SELECT A DIAGRAM

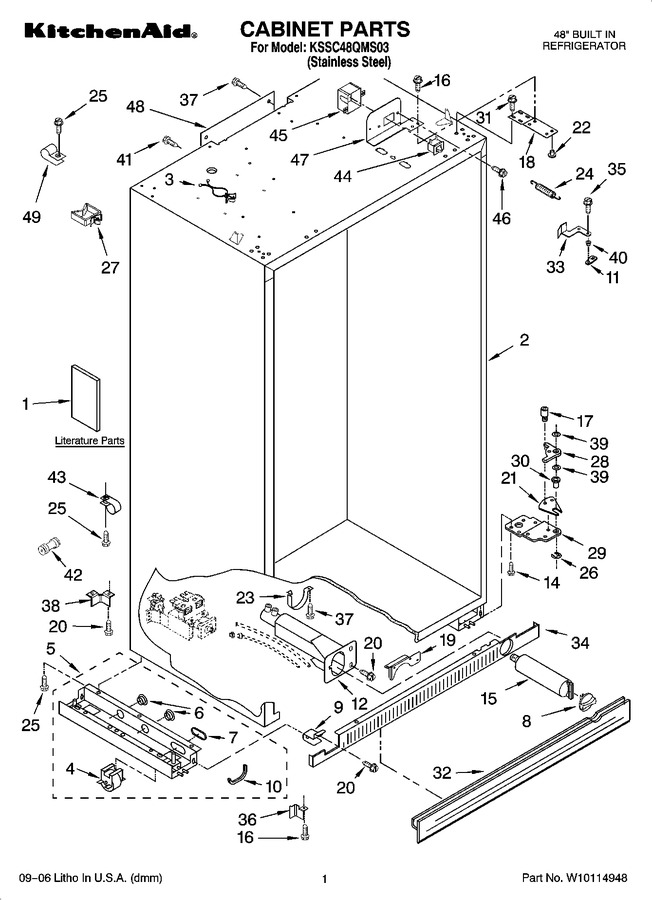

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320531		Use & Care Guide		Appelez-nous	-
1	2320627		Service & Wiring Sheet		Appelez-nous	-
1	2306424		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	2302865		Main Control Service Sheet		Appelez-nous	-
1	2309069		Installation Instructions		Appelez-nous	-
1	2307359		Energy Label		Appelez-nous	-
3	2320650		Clamp, Tube		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 43.18
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: 2004506)			Immediately	$ 364.76
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: 2004505)				$ 363.65
6	2005006		Grommet, Wiring		Appelez-nous	-
7	2005007		Grommet, Flexible		Appelez-nous	-
8	WP2186494B		Cap Water Filter   (Replaces: 2186494B)			Immediately	$ 53.20
9	2006442		Mounting Stud, Grill		Appelez-nous	-
10	2005004		Grommet, Crossover Tube		Appelez-nous	-
11	2005783		Cam, Door Closer				$ 26.20
12	WP2209022		Housing, Water Filter   (Replaces: 2209022)			Immediately	$ 234.82
14	3400525		Screw				$ 12.83
15	2255709		Filter, Water		Appelez-nous	-
16	WP489399		Screw   (Replaces: 489399)				$ 6.95
17	W11769878		Screw, Door Stop   (Replaces: 3400230)				$ 12.16
18	2257644		Hinge (top)				$ 169.50
19	2307582		Bracket, Mount (water Filter)		Appelez-nous	-
20	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
21	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.96
22	2300082		Bushing				$ 13.44
23	2209090		Clamp, Filter Housing		Appelez-nous	-
24	W11805224		Spring, Door Closure (right Side)   (Replaces: 2221242)		Appelez-nous	-
24	WP2004517		Spring, Door Closure (left Side)   (Replaces: 2004517)			Immediately	$ 90.89
25	W11624204		Screw   (Replaces: 486194)				$ 14.02
26	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 12.17
27	2320677		Wire Clip (5)		Appelez-nous	-
28	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
29	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 285.08
29	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 130.70
30	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 86.40
31	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.08
32	2209026B		Skirt-grille, Bottom				$ 76.14
33	W11298172		Extension Arm, Door Closer (left)   (Replaces: 2266881)			Immediately	$ 83.27
33	W10847927		Extension Arm, Door Closer (right)   (Replaces: 2266882)				$ 95.15
34	2209431B		Grille Bottom, Front				$ 82.32
35	2005921		Screw				$ 7.65
36	2006616		Bracket, Support Base (front) (left)				$ 87.17
36	2006556		Bracket, Support Base (front) (right)				$ 35.43
37	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
38	2006617		Bracket, Support Base (rear) (2)		Appelez-nous	-
39	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
40	WP2316859		Bushing, Extension Arm   (Replaces: 2266880)			Immediately	$ 51.62
41	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
42	WP4373559		Union   (Replaces: 2209709)				$ 77.35
43	488946		Tube, Clamp				$ 20.45
44	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 38.18
44	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 37.23
45	2215938		Cover, Switch (2)				$ 90.27
46	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 10.72
47	W10741111		Bracket, Cover (right)   (Replaces: 2221097)				$ 64.16
47	2221096		Bracket, Cover (left)				$ 93.20
48	2215612		Cover, Rear		Appelez-nous	-
49	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 10.99

    View Diagram in Separate Window       Print Part List
