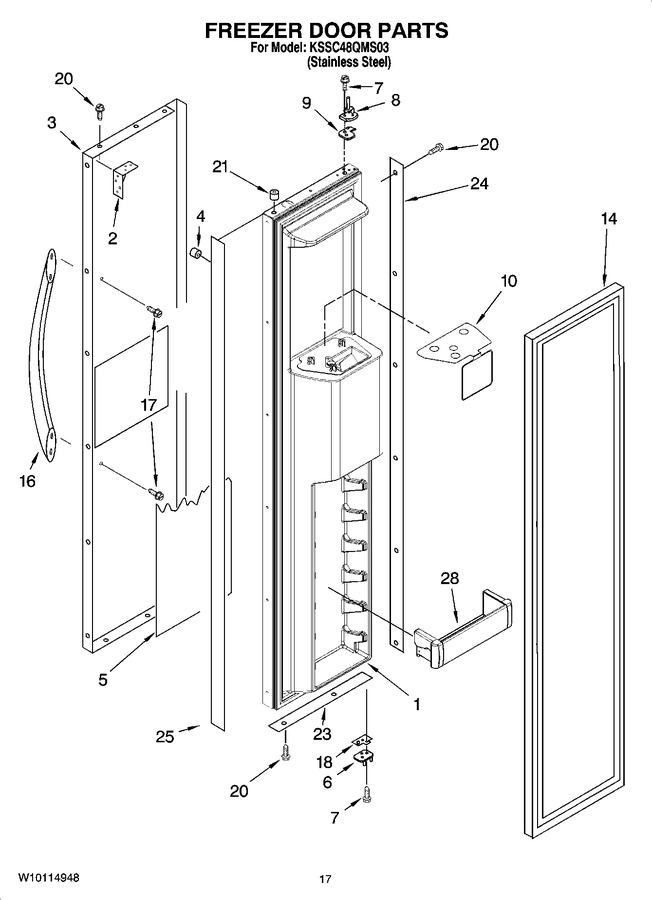

11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320572B		Freezer Door, Service (includes Dispenser Items)		Appelez-nous	-
2	2258951		Door Brace, Corner				$ 33.35
3	2306164		Door Skin		Appelez-nous	-
4	2252354		Spacer		Appelez-nous	-
5	2252392		Filler, Door		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	2256381		Spacer-door, Top				$ 24.49
10	2304896		Safety Barrier		Appelez-nous	-
14	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
16	2005290		Handle, Door				$ 130.36
17	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door (top)				$ 23.33
23	2257386		Spacer, Door (bottom)		Appelez-nous	-
24	2005030		Spacer, Door Hinge Side		Appelez-nous	-
25	2309060		Spacer, Door (handle Side)		Appelez-nous	-
28	W11590561		Door Shelf   (Replaces: 2222777)				$ 94.23
