Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2257412S Panel, Decorator Appelez-nous -
2 2259320 Cover, Unit Appelez-nous -
3 2215910 Grommet, Flexible Special Order $ 94.32

4 2256466 Back Panel Special Order $ 327.22

5 2320678 Cover-unit, Front Appelez-nous -
6 2005292 Nameplate Special Order $ 52.20

9 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24

11 2254759 Bracket, Louver Appelez-nous -
12 2254762S Grille, Louver Appelez-nous -
13 303776 Screw   (Replaces: 488879) Appelez-nous -
14 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

15 2310194 Wire Assembly, Rc/fc Light Switch Special Order $ 69.47

16 489348 Clamp Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

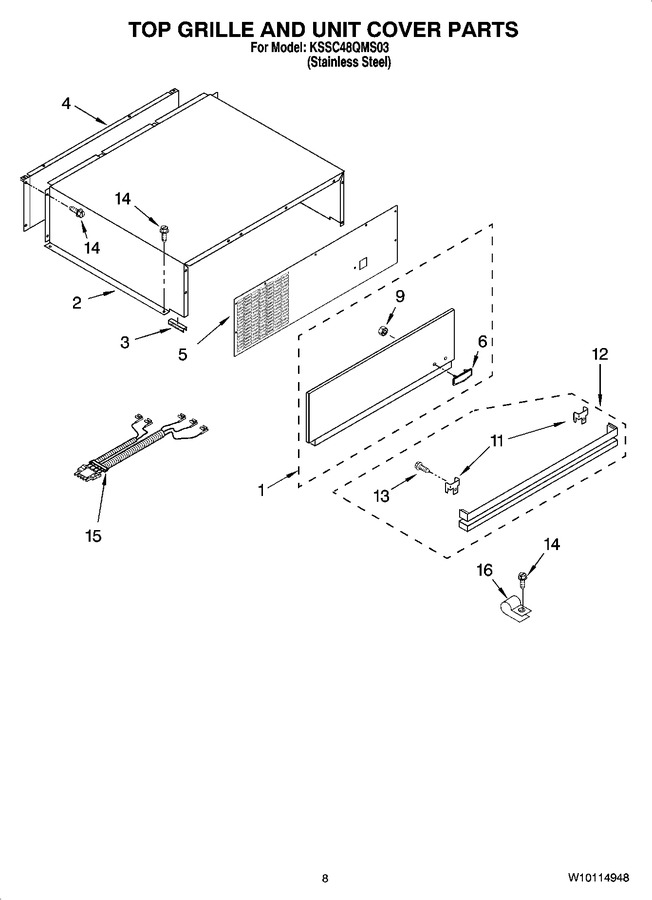

Diagram for KSSC48QMS03
