SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

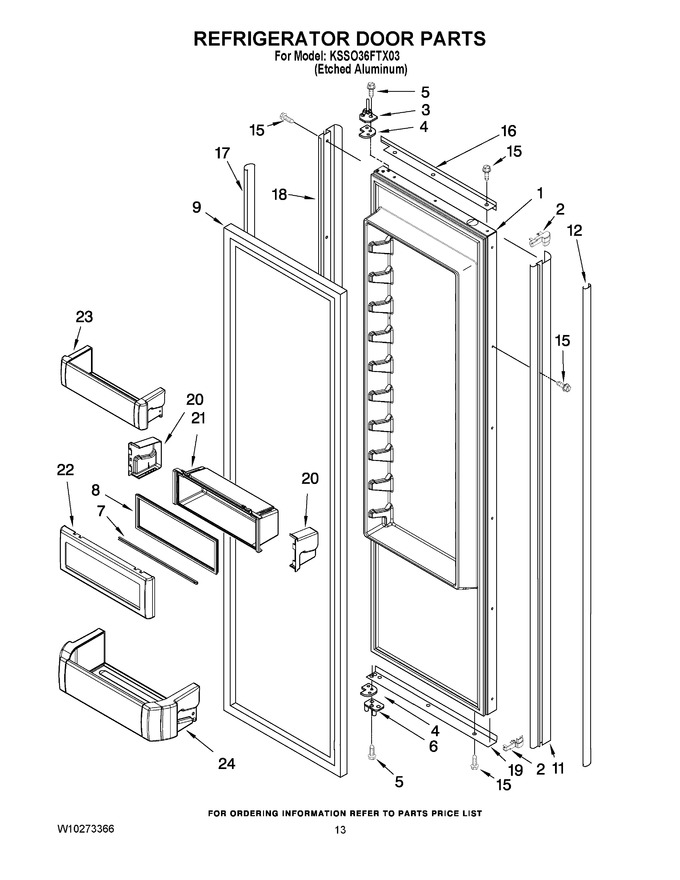

1	W10193489		Refrigerator Door Panel (includes Item No.9)		Appelez-nous	-
2	2207457		Trim, Cover				$ 57.12
3	2252295		Hinge Assembly, Top				$ 51.53
4	W11673500		Spacer-door   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	2222795		Rail, Lid				$ 84.11
8	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 214.40
9	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 369.84
11	2309497S		Trim, Door (handle Side) (etched Aluminum)				$ 323.02
12	2314003S		Cover, Screw (handle Side) (etched Aluminum)				$ 174.63
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 11.42
16	2309485S		Trim, Door (top) (etched Aluminum)		Appelez-nous	-
17	2259448S		Cover, Screw (hinge Side) (etched Aluminum)				$ 179.50
18	2309498S		Trim, Door (hinge Side) (etched Aluminum)				$ 324.38
19	2309491S		Trim (bottom) (etched Aluminum)		Appelez-nous	-
20	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.60
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.60
21	WPW10323035		Bin, Utility Center   (Replaces: 2222921)				$ 84.93
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 75.81
23	W10323598		Door Shelf   (Replaces: 2222772)				$ 104.79
24	W10323746		Shelf, Gallon Door   (Replaces: 2222769)				$ 108.24
