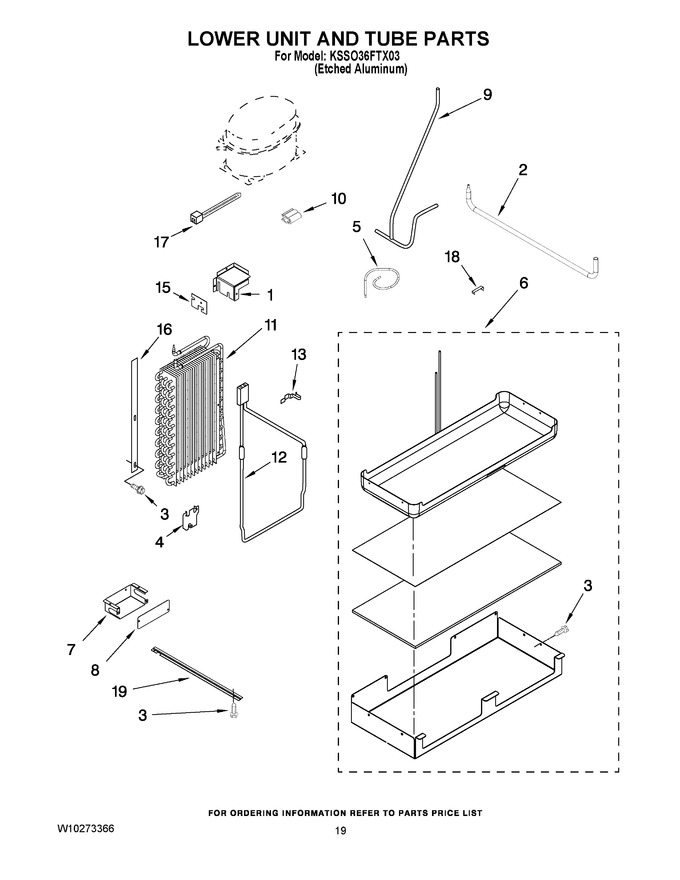

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160981 | Bracket Assembly, Air Return |
|
- | |||||
| 2 | W10388653 | Tube, Transition (drier/restrictor) (Replaces: 2309070) |
|
Immediately | $ 40.48 | ||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 4 | W10157752 | Bracket, Heater Mounting |
|
- | |||||
| 5 | 2309076 | Suction Tube |
|
$ 136.59 | |||||
| 6 | W11623101 | Drain Pan Assy. (Replaces: W10196999) |
|
Immediately | $ 394.02 | ||||
| 7 | W10151288 | Cover, Wiring |
|
- | |||||
| 8 | W10153595 | Cover, Box |
|
- | |||||
| 9 | W10121370 | Tube, Discharge |
|
- | |||||
| 10 | 9791833 | Clip |
|
- | |||||
| 11 | W10205100 | Evaporator |
|
- | |||||
| 12 | W10140160 | Heater, Defrost |
|
- | |||||
| 13 | 1113048 | Clamp, Heater (2) |
|
- | |||||
| 15 | W10139908 | Seal, Return Air |
|
$ 13.06 | |||||
| 16 | 2220832 | Gasket, Evaporator |
|
- | |||||
| 17 | 4389107 | Wire Tie |
|
- | |||||
| 18 | W10169509 | Clip, Heat Exchanger |
|
- | |||||
| 19 | 2320554 | Support, Drain Pan |
|
- |
