SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

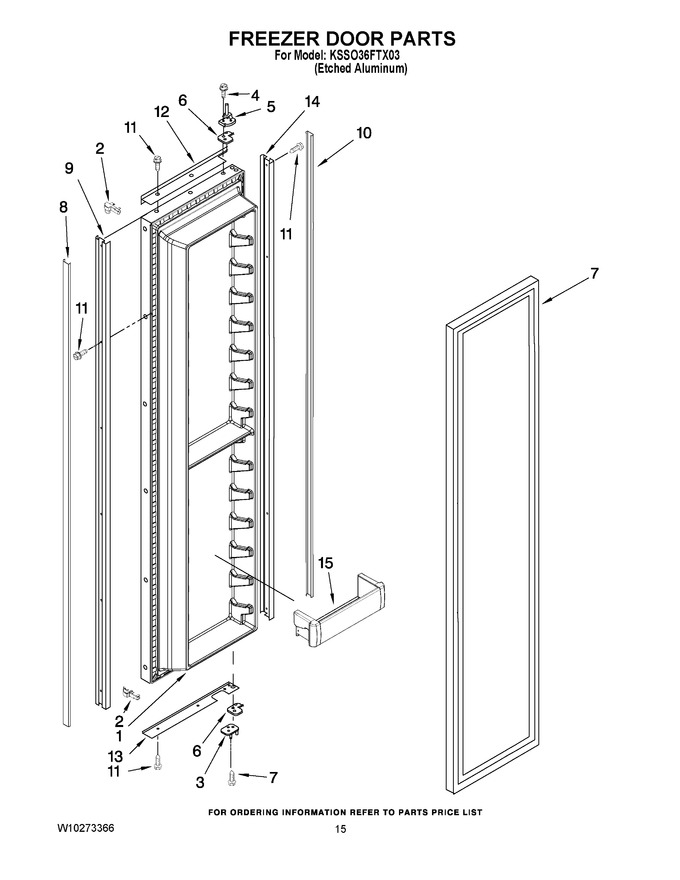

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193485		Freezer Door Panel (includes Item No.7)		Appelez-nous	-
2	2207457		Trim, Corner				$ 57.12
3	2252294		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
5	2252295		Hinge, Top				$ 51.53
6	W11673500		Spacer-door   (Replaces: 2316804)			Immediately	$ 108.07
7	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
8	2314003S		Cover, Screw (handle Side) (etched Aluminum)				$ 174.63
9	2309497S		Trim, Door (handle Side) (etched Aluminum)				$ 323.02
10	2259448S		Cover, Screw (hinge Side) (etched Aluminum)				$ 179.50
11	WP8281250		Stainless Steel Trim, Door (top)   (Replaces: 8281250)				$ 11.42
12	2309488S		Etched Aluminum Trim (bottom)		Appelez-nous	-
13	2309494S		Etched Aluminum		Appelez-nous	-
14	2309498S		Trim, Door (hinge Side) (etched Aluminum)				$ 324.38
15	W10323601		Bin, Shelf F.c. (6)   (Replaces: 2222775)				$ 92.19
