Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2252331 Refrigerator Door Panel (includes Item 9) Special Order $ 1,681.37

3 W11724512 Hinge Assembly, Top   (Replaces: 2266854) Special Order $ 297.62

4 2256381 Spacer-door, Top Special Order $ 24.49

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.02

6 2302878 Hinge Assembly, Bottom In-Stock Immediately $ 86.68

7 W11348580 Rail, Lid   (Replaces: 2222797) In-Stock Immediately $ 162.13

8 W11348580 Gasket, Utility Bin   (Replaces: 2222983) In-Stock Immediately $ 162.13

9 WP2266903 Door Gasket, Magnetic   (Replaces: 2222812) In-Stock Immediately $ 323.83

11 2259040B Trim, Door (handle Side) (black) Appelez-nous -
11 2259040X Trim, Door (handle Side) (etched Aluminum) Appelez-nous -
11 2259040W Trim, Door (handle Side) (white) Appelez-nous -
12 2259448B Cover, Screw (hinge Side) (black) Appelez-nous -
12 2259448X Cover, Screw (hinge Side) (etched Aluminum) Appelez-nous -
12 2259448W Cover, Screw (hinge Side) (white) Appelez-nous -
13 2257637 Door Spacer, Bottom Special Order $ 15.45

14 2259365X Cover, Screw (handle Side) (etched Aluminum) Special Order $ 102.27

14 2259365W Cover, Screw (handle Side) (white) Appelez-nous -
14 2259365B Cover, Screw (handle Side) (black) Appelez-nous -
15 W10851443 Screw, 8-15 X .500 (black)   (Replaces: 8281252) In-Stock Immediately $ 7.69

15 W10825422 Screw, 8-15 X .500 (white)   (Replaces: 8281251) Special Order $ 10.82

15 WP8281250 Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250) Special Order $ 10.88

16 2005841 Trim, Door (top) (black) Appelez-nous -
16 100005989 Trim, Door (top) (etched Aluminum)   (Replaces: 2005012) Special Order $ 14.76

16 2005015 Trim, Door (top) (white) Appelez-nous -
18 2257686X Trim, Door (hinge Side) (etched Aluminum) Appelez-nous -
18 2257686B Trim, Door (hinge Side) (black) Appelez-nous -
18 2257686W Trim, Door (hinge Side) (white) Appelez-nous -
19 2215995B Trim (bottom) (black) Appelez-nous -
19 2215995 Trim (bottom) (etched Aluminum) Appelez-nous -
19 2215995W Trim (bottom) (white) Appelez-nous -
21 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.19

21 WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.19

25 W11348580 Bin, Utility Center   (Replaces: 2222923) In-Stock Immediately $ 162.13

26 W11348580 Door, Utility Bin   (Replaces: 2222926) In-Stock Immediately $ 162.13

27 W11752086 Door Shelf   (Replaces: 2222774) Special Order $ 64.94

28 2165792 Butter Tray Appelez-nous -
30 W10323748 Shelf, Gallon Door   (Replaces: 2222771) Special Order $ 115.98


    View Diagram in Separate Window     Print Icon   Print Part List

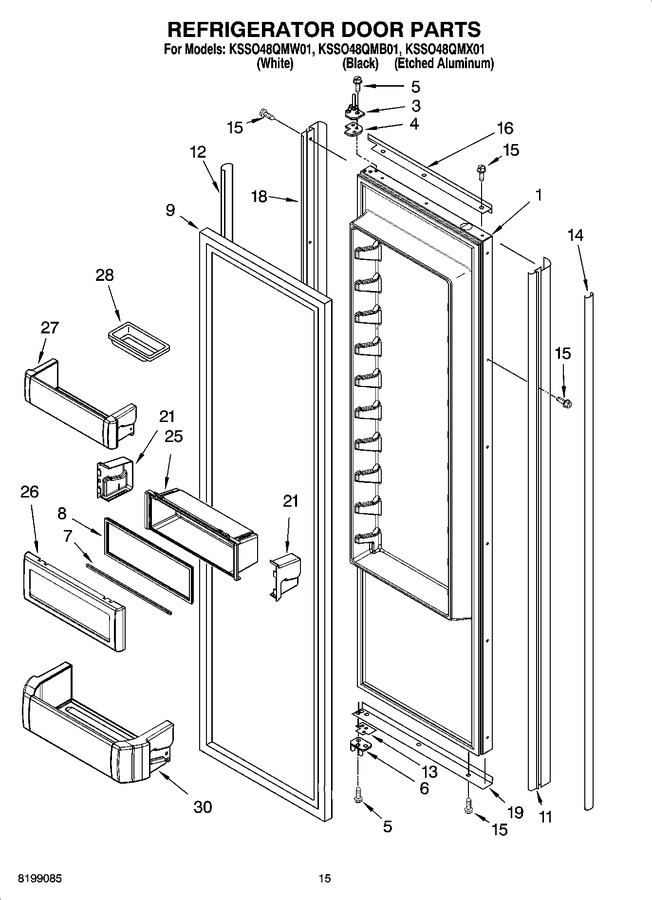

Diagram for KSSO48QMB01
