01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser And Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

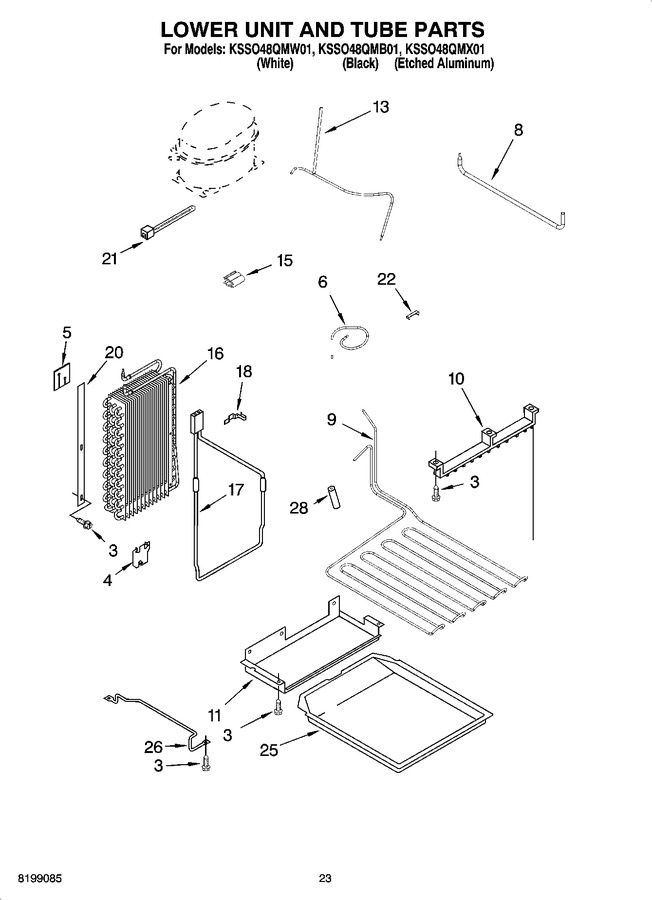

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2215508		Bracket		Appelez-nous	-
5	2302929		Side Support		Appelez-nous	-
6	2259303		Suction Tube				$ 32.51
8	2259304		Tube, Connect (drier/restrictor)				$ 54.54
9	2259329		Heater, Drain Pan		Appelez-nous	-
10	2209450		Hanger, Heater		Appelez-nous	-
11	2005908		Shield, Drain Pan		Appelez-nous	-
13	2259354		Tube, Discharge		Appelez-nous	-
15	9791833		Clip		Appelez-nous	-
16	WP2306094		Evaporator   (Replaces: 2306094)			Immediately	$ 413.90
17	WP2306389		Heater, Defrost   (Replaces: 2306389)				$ 161.07
18	1113048		Clamp, Heater (2)		Appelez-nous	-
20	2220832		Gasket, Evaporator		Appelez-nous	-
21	4389107		Wire Tie		Appelez-nous	-
22	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
25	WP2001264		Drain Pan   (Replaces: 2001264)				$ 263.98
26	1113206		Bracket, Drain Pan (left)		Appelez-nous	-
26	1113207		Bracket, Drain Pan (right)		Appelez-nous	-
28	2215648		Damper, Heater				$ 12.58

    View Diagram in Separate Window       Print Part List
