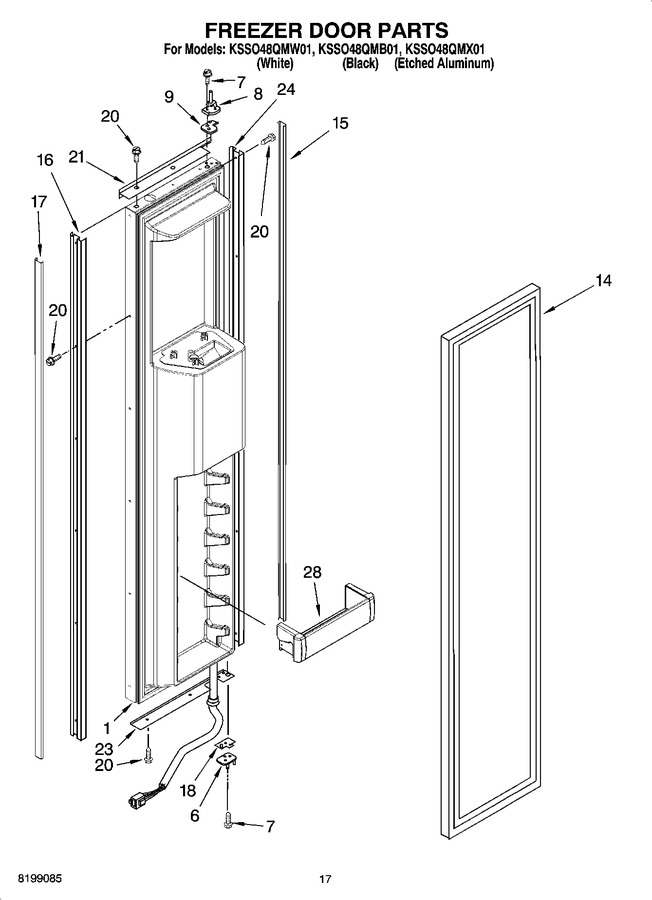

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252325W		Freezer Door Panel (includes Item 14) (white L2307847b Black)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 60.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 297.62
9	2256381		Spacer-door, Top				$ 24.49
14	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 352.23
15	2259448X		Cover, Screw (hinge Side) (etched Aluminum)		Appelez-nous	-
15	2259448W		Cover, Screw (hinge Side) (white)		Appelez-nous	-
15	2259448B		Cover, Screw (hinge Side) (black)		Appelez-nous	-
16	2259041W		Trim, Door (handle Side) (white)		Appelez-nous	-
16	2259041B		Trim, Door (handle Side) (black)		Appelez-nous	-
16	2259041X		Trim, Door (handle Side) (etched Aluminum)				$ 194.71
17	2259365X		Cover, Screw (handle Side) (etched Aluminum)				$ 102.27
17	2259365W		Cover, Screw (handle Side) (white)		Appelez-nous	-
17	2259365B		Cover, Screw (handle Side) (black)		Appelez-nous	-
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.88
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.69
20	W10825422		Screw (white)   (Replaces: 8281251)				$ 10.82
21	2005021		Trim, Door (top) (etched Aluminum)		Appelez-nous	-
21	2005024		Trim, Door (top) (white)		Appelez-nous	-
21	2005887		Trim, Door (top) (black)		Appelez-nous	-
23	2215986W		Trim (bottom) (white)		Appelez-nous	-
23	2215986B		Trim (bottom) (black)		Appelez-nous	-
23	2215986		Trim (bottom) (etched Aluminum)		Appelez-nous	-
24	2257687X		Trim, Door (hinge Side) (etched Aluminum)		Appelez-nous	-
24	2257687B		Trim, Door (hinge Side) (black)		Appelez-nous	-
24	2257687W		Trim, Door (hinge Side) (white)		Appelez-nous	-
28	W11590561		Bin, Shelf   (Replaces: 2222777)				$ 89.74
