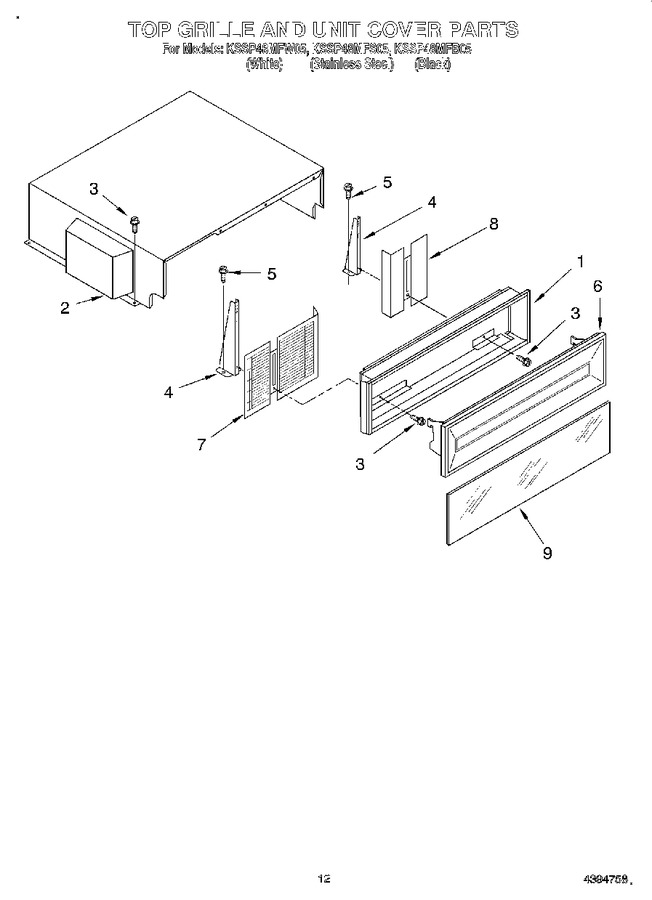

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003718		Top Grille Assembly (white)		Appelez-nous	-
1	2003715		Top Grille Assembly (black)		Appelez-nous	-
1	2004957		Top Grille Assembly (stainless Steel)		Appelez-nous	-
2	2004946		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.02
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 16.65
6	2003727		Decortive Panel Assembly (white)		Appelez-nous	-
6	2003724		Decortive Panel Assembly (black)		Appelez-nous	-
6	2004960		Decortive Panel Assembly (stainless Steel)		Appelez-nous	-
7	2003480		Guard, Compressor Wiring		Appelez-nous	-
8	2003483		Guard, Water Valve Wiring		Appelez-nous	-
9	4318657		Panel, Decorative Acrylic (white)		Appelez-nous	-
9	4318649		Panel, Decorative Acrylic (black)		Appelez-nous	-
9	4378763		Panel, Decorative Acrylic (stainless Steel)		Appelez-nous	-
