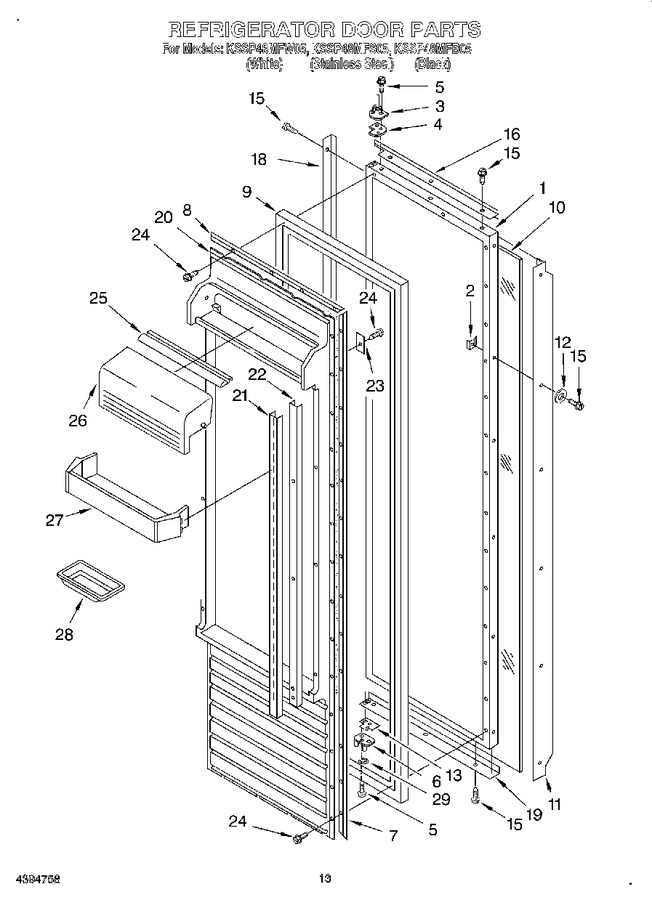

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003872		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.50
3	2004521		Hinge Assembly, Top		Appelez-nous	-
4	2004520		Spacer-door, Top		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2004523		Hinge Assembly, Bottom				$ 29.76
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112542		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188321A		Door Gasket, Magnetic   (Replaces: 2001049)				$ 340.46
10	4378762		Panel, Decorative (stainless Steel)		Appelez-nous	-
10	4318654		Panel, Decorative (white)		Appelez-nous	-
10	4318646		Panel, Decorative (black)		Appelez-nous	-
11	2003679		Handle, Door (black)		Appelez-nous	-
11	2004636		Handle, Door (stainless Steel)		Appelez-nous	-
11	2003680		Handle, Door (white)		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2004549		Door, Spacer Bottom		Appelez-nous	-
15	2001208		Screw (white)		Appelez-nous	-
15	WP488729		Screw (stainless Steel)   (Replaces: 487052)			Immediately	$ 7.79
16	2005015		Trim (top) (white)		Appelez-nous	-
16	100005989		Trim (top) (black)   (Replaces: 2005012)				$ 14.76
16	2005018		Trim (top) (stainless Steel)		Appelez-nous	-
18	2003676		Trim (side) (white)		Appelez-nous	-
18	2004634		Trim (side) (stainless Steel)		Appelez-nous	-
18	2003675		Trim (side) (black)		Appelez-nous	-
19	2004630		Trim (bottom) (stainless Steel)		Appelez-nous	-
19	2003668		Trim (bottom) (white)		Appelez-nous	-
19	2003665		Trim (bottom) (black)		Appelez-nous	-
20	1113950		Panel, Interior Door		Appelez-nous	-
21	1113949		Ladder, Shelf (2)		Appelez-nous	-
22	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 14.02
25	1113955		Gasket		Appelez-nous	-
26	2003465		Door, Utility Bin		Appelez-nous	-
27	2003132		Door Shelf (4)				$ 13.02
28	2165792		Tray, Butter		Appelez-nous	-
29	2004881		Retaining Ring, Door-closure		Appelez-nous	-
