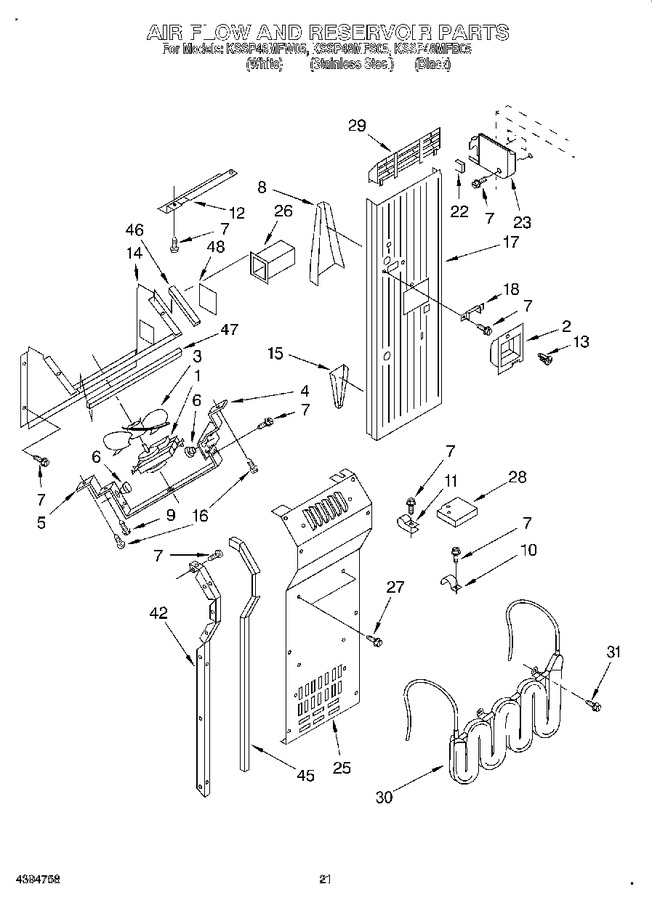

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4389155 | Motor, Fan (Replaces: 2003200) |
|
Immediately | $ 251.31 | ||||
| 2 | 2002732 | Cup, Clearance |
|
- | |||||
| 3 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | 548263 | Bracket (double) |
|
- | |||||
| 5 | 938224 | Bracket (single) |
|
- | |||||
| 6 | 548268 | Grommet |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 8 | 2003926 | Deflector, Air Duct |
|
- | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 10.88 | |||||
| 10 | WP488366 | Clamp, Tube (Replaces: 488366) |
|
$ 11.18 | |||||
| 11 | 489348 | Clamp-nylon |
|
- | |||||
| 12 | 2001145 | Channel, Wiring |
|
- | |||||
| 13 | 1112871 | Fastner |
|
- | |||||
| 14 | 2000783 | Scroll, Fan |
|
- | |||||
| 15 | 2003929 | Deflector, Air Duct |
|
- | |||||
| 16 | WP489069 | Screw (Replaces: 488772) |
|
Immediately | $ 7.86 | ||||
| 17 | 2004907 | Assembly, Air Duct (also Order Items 8 & 15) |
|
- | |||||
| 18 | 2000048 | Air Deflector, Icemaker |
|
- | |||||
| 22 | 1112869 | Gasket, Air Baffle |
|
- | |||||
| 23 | 2003576 | Cover, Air Outlet |
|
- | |||||
| 25 | 2005037 | Cover, Evaporator |
|
- | |||||
| 26 | 2000796 | Connector, Meat Pan Duct |
|
- | |||||
| 27 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 28 | 1112840 | Baffle, Evaporator |
|
- | |||||
| 29 | 1112853 | Diffuser, Air Duct |
|
- | |||||
| 30 | WP2256126 | Reservoir (Replaces: 2004947) |
|
$ 168.85 | |||||
| 31 | 488280 | Screw |
|
- | |||||
| 42 | 2000685 | Evaporator, Cover Rail (right Side) |
|
- | |||||
| 42 | 2000686 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 45 | 2001337 | Gasket (2) Evaporator Cover |
|
- | |||||
| 46 | 2001079 | Gasket (2) |
|
- | |||||
| 47 | 2001080 | Gasket |
|
- | |||||
| 48 | 2001081 | Gasket |
|
- |
