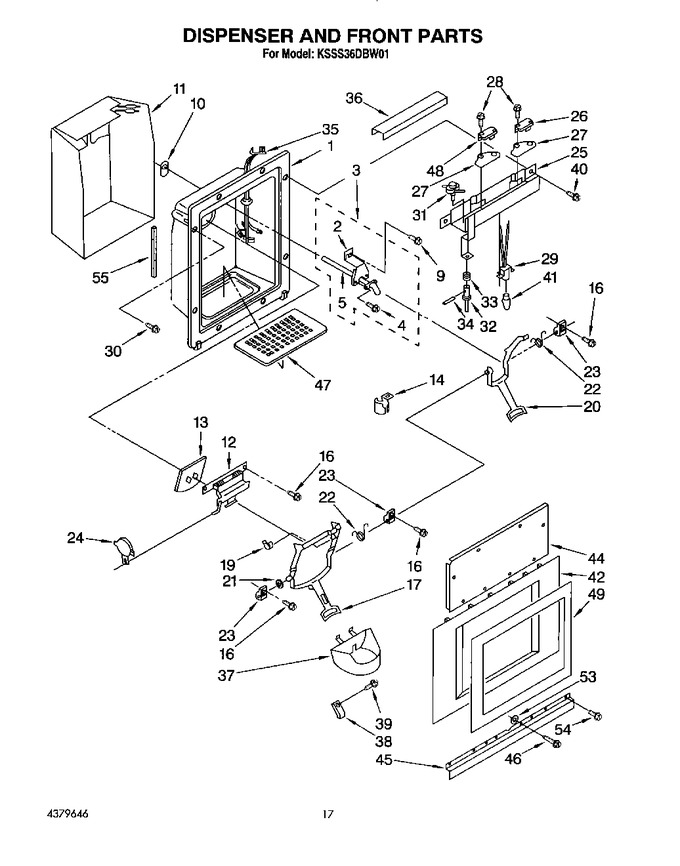

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1124715		Housing, Dispenser		Appelez-nous	-
2	987049		Bracket, Water Fitting		Appelez-nous	-
3	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2155020)				$ 276.43
4	WP965173		Screw   (Replaces: 487916)			Immediately	$ 10.72
9	488316		Screw		Appelez-nous	-
10	987048		Grommet		Appelez-nous	-
11	2001334		Heater, Ice Dispenser		Appelez-nous	-
12	2147167		Ice Door Mechanism				$ 64.67
13	2147168		Door, Ice				$ 33.13
14	1129333		Shroud		Appelez-nous	-
16	WP3400906		Screw   (Replaces: 489000)				$ 7.84
17	2155815		Lever, Ice Dispenser		Appelez-nous	-
19	987917		Bearing, Clip		Appelez-nous	-
20	2159199		Lever, Water Dispenser		Appelez-nous	-
21	488307		Washer		Appelez-nous	-
22	983696		Spring, Lever				$ 21.26
23	983697		Bearing, Lever		Appelez-nous	-
24	WP1120581		Delay Mechanism   (Replaces: 1120581)				$ 213.07
25	1107454		Bracket, Control		Appelez-nous	-
26	841336		Switch		Appelez-nous	-
27	984683		Insulation, Switch		Appelez-nous	-
28	488361		Screw		Appelez-nous	-
29	987265		Lamp Holder		Appelez-nous	-
30	WP489128		Screw   (Replaces: 488500)				$ 10.88
31	851386		Light Switch		Appelez-nous	-
32	1107457		Plunger, Extension		Appelez-nous	-
33	983986		Spring, Plunger		Appelez-nous	-
34	983987		Retainer, Pin		Appelez-nous	-
35	2001350		Wiring Harness, Door		Appelez-nous	-
36	984494		Shield, Wiring		Appelez-nous	-
37	2147479		Guiding, Ice		Appelez-nous	-
38	2147480		Glass Stop		Appelez-nous	-
39	488892		Screw		Appelez-nous	-
40	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
41	WP22002263		Light Bulb   (Replaces: 851389)			Immediately	$ 13.66
42	2001413		Front Cover, Housing		Appelez-nous	-
44	1112836		Cover, Dispenser Opening		Appelez-nous	-
45	2001159		Trim, Front (2)		Appelez-nous	-
46	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
47	1126120		Grille, Overflow		Appelez-nous	-
48	934316		Switch		Appelez-nous	-
49	2001175		Overlay, Cover		Appelez-nous	-
53	487944		Washer (2)		Appelez-nous	-
54	W10759522		Screw (2)   (Replaces: 488568)				$ 7.75
55	482672		Seal		Appelez-nous	-
