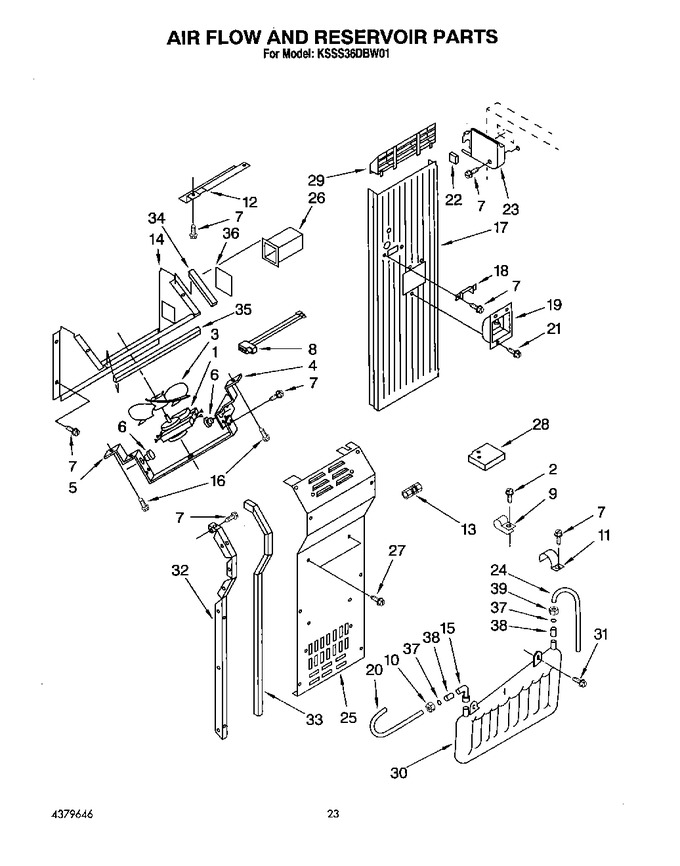

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4389155		Fan Motor   (Replaces: 2001086)			Immediately	$ 251.31
2	WP681414		Screw   (Replaces: 488908)			Immediately	$ 8.47
3	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
4	548263		Bracket (double)		Appelez-nous	-
5	938224		Bracket (single)		Appelez-nous	-
6	548268		Grommet		Appelez-nous	-
7	W11624204		Screw   (Replaces: 486194)				$ 14.72
8	2000618		Motor, Wiring		Appelez-nous	-
9	WP488366		Clamp   (Replaces: 488366)				$ 11.92
10	1129179		Nut, Compression		Appelez-nous	-
11	489348		Clamp-nylon		Appelez-nous	-
12	2001256		Channel, Wiring		Appelez-nous	-
13	WP4211117		Union   (Replaces: 2150347)				$ 10.46
14	2000783		Scroll, Fan		Appelez-nous	-
15	2001791		Elbow		Appelez-nous	-
16	WP489069		Screw   (Replaces: 488772)			Immediately	$ 8.40
17	2000744		Assembly, Air Duct		Appelez-nous	-
18	2000048		Air Deflector, Icemaker		Appelez-nous	-
19	1112870		Cup, Motor		Appelez-nous	-
20	2001150		Water Tube (inlet)		Appelez-nous	-
21	1112871		Fastener (3)		Appelez-nous	-
22	1112869		Gasket, Air Baffle		Appelez-nous	-
23	1113942		Cover, Air Outlet		Appelez-nous	-
24	2001153		Water Tube		Appelez-nous	-
25	2000339		Cover, Evaporator		Appelez-nous	-
26	2000797		Connector, Meat Pan Duct		Appelez-nous	-
27	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
28	1112840		Baffle, Evaporator		Appelez-nous	-
29	1112851		Diffuser, Air Duct		Appelez-nous	-
30	WP2256126		Reservior, Water   (Replaces: 1129170)				$ 177.29
31	488775		Screw		Appelez-nous	-
32	2000685		Evaporator, Cover Rail (right Side)		Appelez-nous	-
32	2000686		Evaporator, Cover Rail (left Side)		Appelez-nous	-
33	2001337		Gasket (2) Evaporator Cover		Appelez-nous	-
34	2001079		Gasket (2)		Appelez-nous	-
35	2001080		Gasket		Appelez-nous	-
36	2001081		Gasket		Appelez-nous	-
37	00753257		Screw   (Replaces: 488819)			Immediately	$ 295.49
38	4387491		Insert,   (Replaces: 841707)				$ 8.23
39	488795		Nut, Compression		Appelez-nous	-
