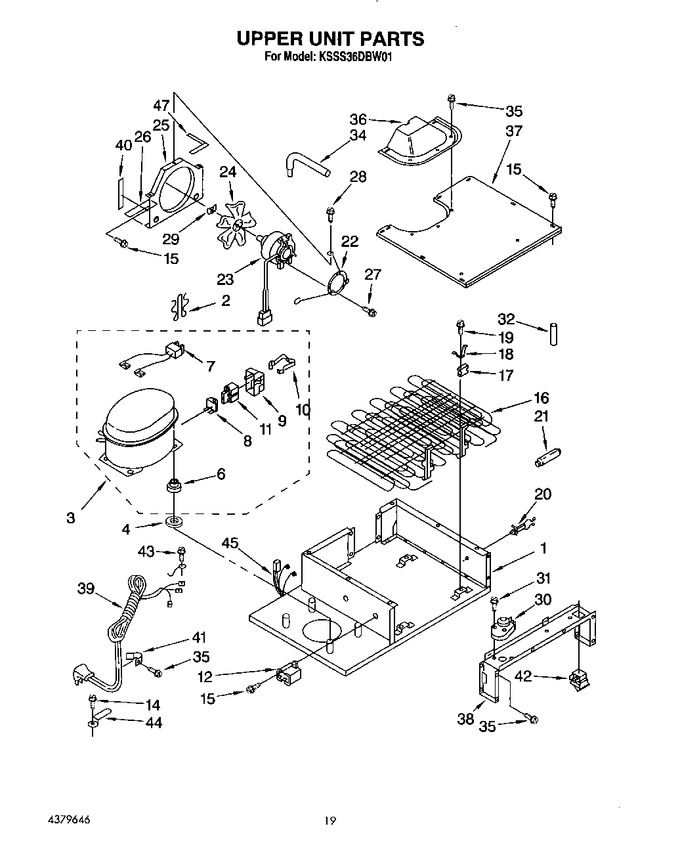

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2002506		Assembly, Unit Base		Appelez-nous	-
2	2163787		Clip, Compressor Mounting (4)				$ 7.83
3	876765		Tube Kit			Immediately	$ 90.65
3	W10439652		Compressor (includes Items 7, 8, 9, 10, 11 & 12) (also Order)   (Replaces: 483146)				$ 442.20
4	680975		Washer		Appelez-nous	-
6	WP2163786		Grommet, Mounting   (Replaces: 2163786)				$ 8.36
7	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.51
8	4387535		Overload (includes Relay)   (Replaces: 2154760)				$ 191.05
9	1108115		Terminal Cover		Appelez-nous	-
10	938384		Strap, Cover		Appelez-nous	-
11	N/A		Relay (see Overload)		Appelez-nous	-
12	2169137		Capacitor		Appelez-nous	-
14	486899		Screw		Appelez-nous	-
15	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
16	1113015		Condenser		Appelez-nous	-
17	943447		Grommet (4)		Appelez-nous	-
18	1113019		Clamp (4)		Appelez-nous	-
19	487522		Screw		Appelez-nous	-
20	1113228		Wire Tie (2)		Appelez-nous	-
21	1108023		Drier		Appelez-nous	-
22	2000358		Mounting Bracket, Motor		Appelez-nous	-
23	2002409		Motor, Fan		Appelez-nous	-
24	2000352		Blade, Fan		Appelez-nous	-
25	2000351		Orifice, Fan		Appelez-nous	-
26	1113303		Gasket, Orifice		Appelez-nous	-
27	WP489399		Screw (3)   (Replaces: 489399)				$ 7.30
28	489368		Screw		Appelez-nous	-
29	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
30	WP2183400		Defrost Timer   (Replaces: 2162044)			Immediately	$ 86.97
31	WP3388228		Screw   (Replaces: 488911)				$ 7.30
32	2000645		Sleeve, Condenser		Appelez-nous	-
34	1113059		Process, Tube		Appelez-nous	-
35	W11624204		Screw   (Replaces: 486194)				$ 14.72
36	2000853		Cover, Fan		Appelez-nous	-
37	2001878		Cover, Condenser		Appelez-nous	-
38	1113076		Extension, Housing		Appelez-nous	-
39	937360		Cord, Service		Appelez-nous	-
40	2001503		Seal Strip (2)		Appelez-nous	-
41	1113162		Clamp, Cord (2)		Appelez-nous	-
42	WP2266802		Switch, Power Disconnect   (Replaces: 1113229)				$ 109.08
43	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
44	653035		Clip, Cord Plug		Appelez-nous	-
45	2001077		Wiring Harness, Unit Compartment		Appelez-nous	-
47	876764		Valve, Access(3/16``)			Immediately	$ 95.92
47	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
47	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
47	978028		Valve, Access (1/2)		Appelez-nous	-
47	978029		Valve Access (5/8``)				$ 93.85
47	978030		Valve, Access (3/4``)				$ 137.25
47	2001079		Gasket (2)		Appelez-nous	-
47	978026		Valve, Access (5/16``)			Immediately	$ 134.49
