SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Top Grille And Unit Cover


04 - Refrigerator Liner


05 - Freezer Liner


06 - Ice Container


07 - Refrigerator Control Panel


08 - Freezer Control Panel


09 - Refrigerator Shelf


10 - Freezer Shelf


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser And Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Icemaker, Lit/optional

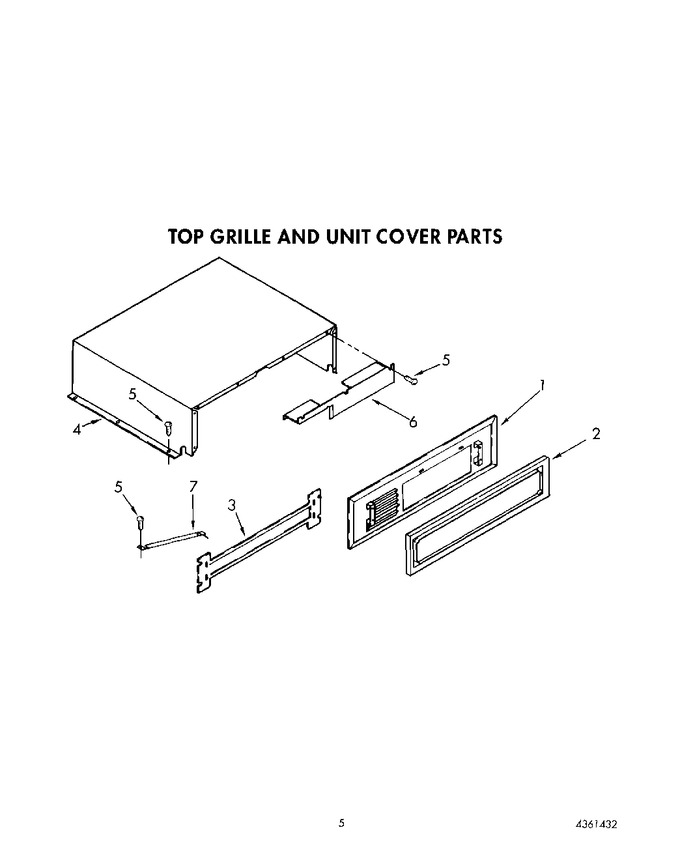

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001578		Top Grille Assembly		Appelez-nous	-
2	2001316		Decorative Panel Assembly		Appelez-nous	-
3	1113355		Back Up Panel		Appelez-nous	-
4	2001088		Cover, Unit		Appelez-nous	-
5	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
6	1113300		Cover, Component Assembly		Appelez-nous	-
7	1113317		Brace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
