SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Top Grille And Unit Cover


04 - Refrigerator Liner


05 - Freezer Liner


06 - Ice Container


07 - Refrigerator Control Panel


08 - Freezer Control Panel


09 - Refrigerator Shelf


10 - Freezer Shelf


11 - Refrigerator Door


12 - Freezer Door


13 - Dispenser And Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Icemaker, Lit/optional

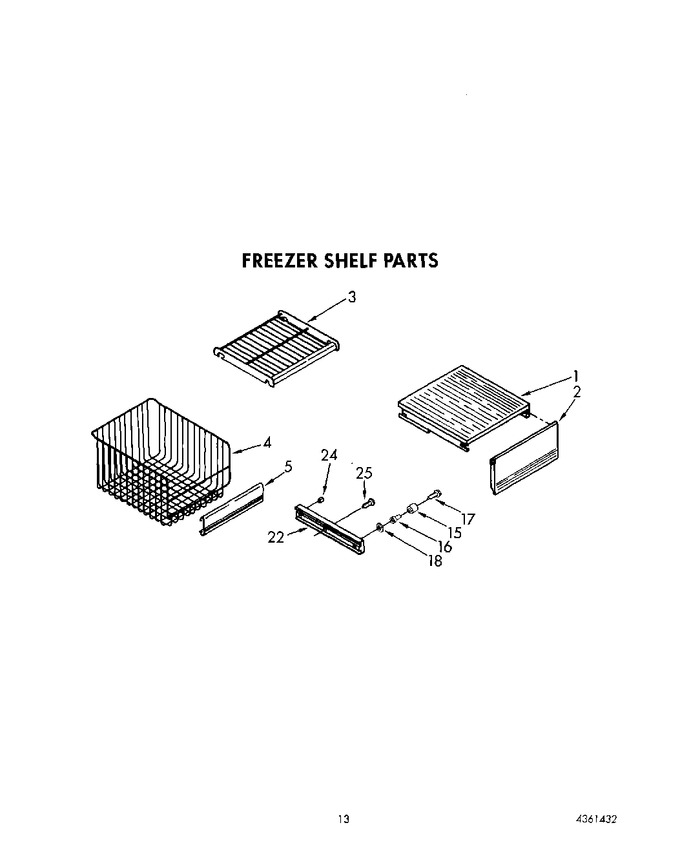

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112366		Solid Shelf		Appelez-nous	-
2	2000886		Front, Ice Compartment		Appelez-nous	-
3	1113565		Shelf, Bottom (2)		Appelez-nous	-
3	1113637		Shelf, Top (1)		Appelez-nous	-
4	2001625		Basket		Appelez-nous	-
5	1113643		Trim, Basket		Appelez-nous	-
15	1113870		Roller		Appelez-nous	-
16	1113871		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw, 10-16 X 3/4   (Replaces: 489211)			Immediately	$ 10.82
18	488307		Washer		Appelez-nous	-
22	2000062		Slide, Basket L.s.		Appelez-nous	-
22	2000061		Slide, Basket R.s.		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
