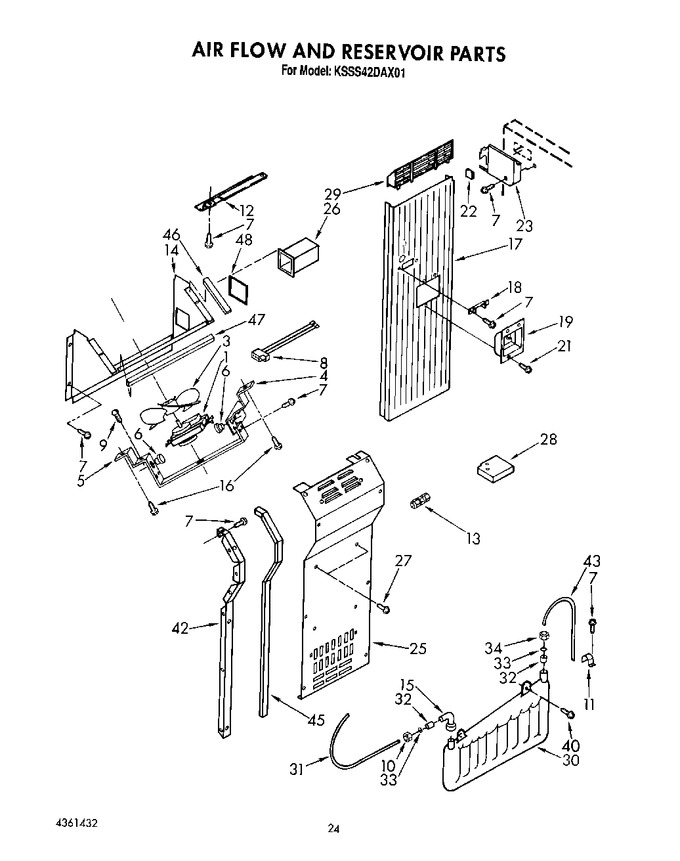

16 - Air Flow And Reservoir


17 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4389155		Fan Motor   (Replaces: 2001086)			Immediately	$ 251.31
3	WP2169142		Fan Blade   (Replaces: 2154800)			Immediately	$ 43.41
4	548263		Bracket (double)		Appelez-nous	-
5	938224		Bracket (single)		Appelez-nous	-
6	548268		Grommet		Appelez-nous	-
7	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
8	2000618		Motor, Wiring		Appelez-nous	-
9	WP489128		Screw, Ground   (Replaces: 488500)				$ 10.88
10	1129179		Nut,		Appelez-nous	-
11	489348		Clamp-nylon		Appelez-nous	-
11	WP488366		Clamp, Tube   (Replaces: 488366)				$ 11.18
12	2001257		Channel, Wiring		Appelez-nous	-
13	WP4211117		Union   (Replaces: 2150347)				$ 9.96
14	2000783		Scroll, Fan		Appelez-nous	-
15	2001791		Elbow		Appelez-nous	-
16	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.86
17	2000745		Assembly, Air Duct		Appelez-nous	-
18	2000048		Air Deflector, Icemaker		Appelez-nous	-
19	1112870		Cup, Motor		Appelez-nous	-
21	1112871		Fastener (3)		Appelez-nous	-
22	1112869		Gasket, Air Baffle		Appelez-nous	-
23	1113942		Cover, Air Outlet		Appelez-nous	-
25	2000341		Cover, Evaporator		Appelez-nous	-
26	2000795		Connector, Meat Pan Duct		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 487539)			Immediately	$ 7.79
28	1112840		Baffle, Evaporator		Appelez-nous	-
29	1112852		Diffuser, Air Duct				$ 8.57
30	WP2256126		Reservior, Water   (Replaces: 1129170)				$ 168.85
31	2001151		Water Tube (inlet)		Appelez-nous	-
32	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
33	00753257		``o`` Ring Seal   (Replaces: 488819)			Immediately	$ 295.49
34	488795		Compression Nut		Appelez-nous	-
40	488775		Screw		Appelez-nous	-
42	2000686		Evaporator, Cover Rail (left Side)		Appelez-nous	-
42	2000685		Evaporator, Cover Rail (right Side)		Appelez-nous	-
43	W10823511		Water Tube (outlet)   (Replaces: 2001321)			Immediately	$ 32.41
45	2001337		Gasket (2) Evaporator Cover		Appelez-nous	-
46	2001079		Gasket (2)		Appelez-nous	-
47	2001080		Gasket		Appelez-nous	-
48	2001081		Gasket		Appelez-nous	-
