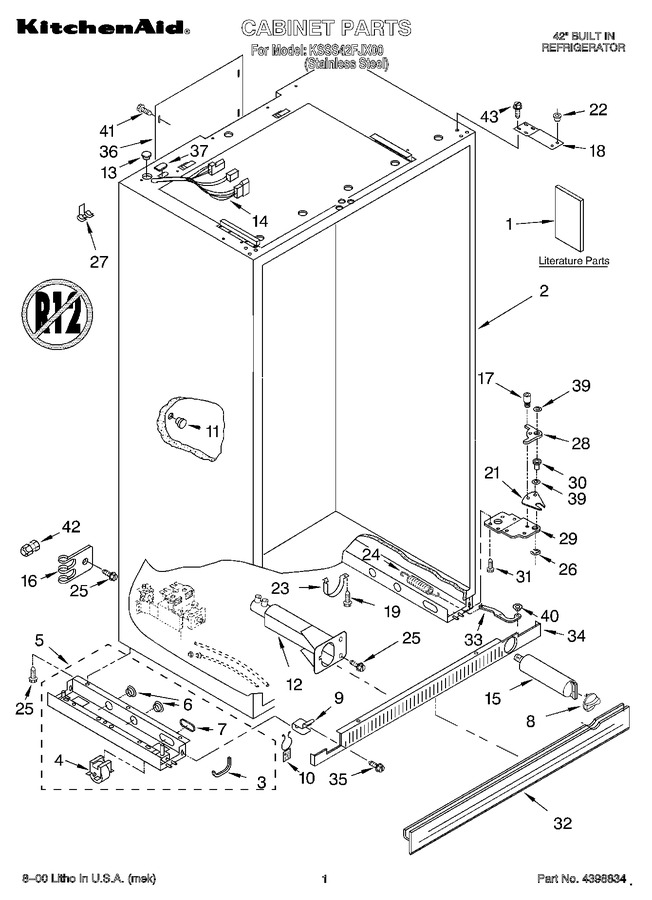

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2209250 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT2209249 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2209472 | Energy Label |
|
- | |||||
| 1 | LIT2209309 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | 2005004 | Grommet, Tube Crossover |
|
- | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: 1112023) |
|
$ 43.18 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: 2004506) |
|
Immediately | $ 364.76 | ||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: 2004505) |
|
$ 363.65 | |||||
| 6 | 2005006 | Grommet, Wiring |
|
- | |||||
| 7 | 2005007 | Grommet, Flexible |
|
- | |||||
| 8 | WP2186494B | Cap Water Filter (Replaces: 2186494B) |
|
Immediately | $ 53.20 | ||||
| 9 | 2006442 | Mounting Stud, Grill |
|
- | |||||
| 10 | 2005237 | Clip, Wire |
|
- | |||||
| 11 | 1112849 | Cap, Grommet |
|
- | |||||
| 12 | WP2209022 | Housing, Water Filter (Replaces: 2209022) |
|
Immediately | $ 234.82 | ||||
| 13 | 1113122 | Grommet, Wiring |
|
- | |||||
| 14 | 2209060 | Wiring Harness, Cabinet |
|
- | |||||
| 15 | EDR5RXD1B | Filter, Water (Replaces: 2203220) |
|
Immediately | $ 49.99 | ||||
| 16 | 934011 | Tube, Clamp |
|
- | |||||
| 17 | WP2005378 | Screw, Door Stop (Replaces: 2005378) |
|
$ 11.10 | |||||
| 18 | 2257644 | Hinge (top) (Replaces: 2005295) |
|
$ 169.50 | |||||
| 19 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 21 | WP2004994 | Lock, Adjustable Bushing (Replaces: 2004994) |
|
Immediately | $ 7.96 | ||||
| 22 | 2002903 | Bushing |
|
$ 34.41 | |||||
| 23 | 2209090 | Clamp, Filter Housing |
|
- | |||||
| 24 | 2004566 | Spring, Door Closure (red) |
|
- | |||||
| 24 | 2004567 | Spring, Door Closure (blue) |
|
- | |||||
| 25 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 26 | WP489236 | Retaining Ring, Adjustable Bushing (Replaces: 2005008) |
|
Immediately | $ 12.17 | ||||
| 27 | 1113227 | Fastener (3) |
|
- | |||||
| 28 | 2006342 | Gap, Cover Assembly (bottom) |
|
- | |||||
| 29 | W10527053 | Hinge (bottom) (refrigerator Side) (Replaces: 2006779) |
|
$ 130.70 | |||||
| 29 | WP2006780 | Hinge (bottom) (freezer Side) (Replaces: 2006780) |
|
$ 285.08 | |||||
| 30 | WP2302876 | Bushing, Adjustable (Replaces: 2004992) |
|
Immediately | $ 86.40 | ||||
| 31 | WP8204624 | Screw (Replaces: 2001415) |
|
$ 16.65 | |||||
| 32 | 2209025B | Skirt, Grille Bottom |
|
$ 48.90 | |||||
| 33 | 2004516 | Linkage, Door Closure |
|
- | |||||
| 34 | 2209428B | Grille, Bottom Front |
|
$ 78.80 | |||||
| 35 | 489238 | Screw |
|
- | |||||
| 36 | 2004512 | Cover, Rear |
|
- | |||||
| 37 | 2209203 | Grommet, Wiring |
|
- | |||||
| 39 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.20 | ||||
| 40 | 2004565 | Bushing, Door Closure |
|
$ 42.64 | |||||
| 41 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 7.19 | |||||
| 42 | WP4318044 | Union (Replaces: 2196152) |
|
$ 10.35 | |||||
| 43 | WP8204624 | Screw (4) (Replaces: 2001415) |
|
$ 16.65 |
