SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Air Flow And Reservoir


15 - Ice Maker, Optional

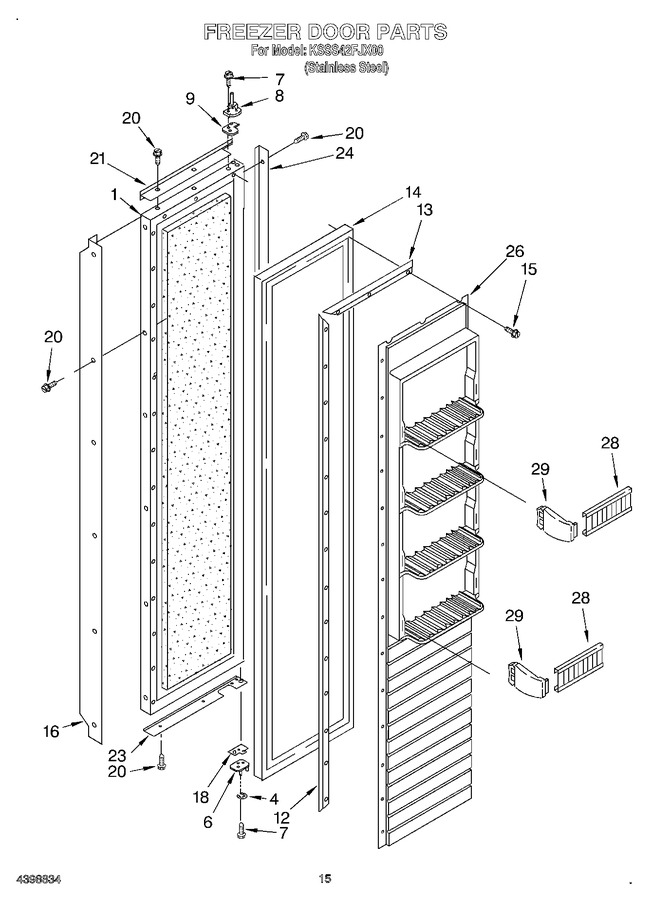

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003877		Freezer Door Panel (includes Insulation)		Appelez-nous	-
4	2004881		Retaining Ring, Door-closure		Appelez-nous	-
6	2004524		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2005329		Hinge, Top		Appelez-nous	-
9	2004520		Spacer-door, Top		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188318A		Door Gasket, Magnetic   (Replaces: 2188318)				$ 333.90
15	W11624204		Screw (34)   (Replaces: 486194)				$ 14.02
16	2005942		Handle, Door		Appelez-nous	-
18	2004549		Door, Spacer		Appelez-nous	-
20	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
21	2005020		Trim (top)		Appelez-nous	-
23	2004561		Trim (bottom)		Appelez-nous	-
24	2005962		Trim (side)		Appelez-nous	-
26	2209031		Panel, Interior Door		Appelez-nous	-
28	2188515		Shelf Bin		Appelez-nous	-
29	2209134		Trim, End Cap (right Side)				$ 10.05
29	2208954		Trim, Endcap (left Side)				$ 5.84

    View Diagram in Separate Window       Print Part List
