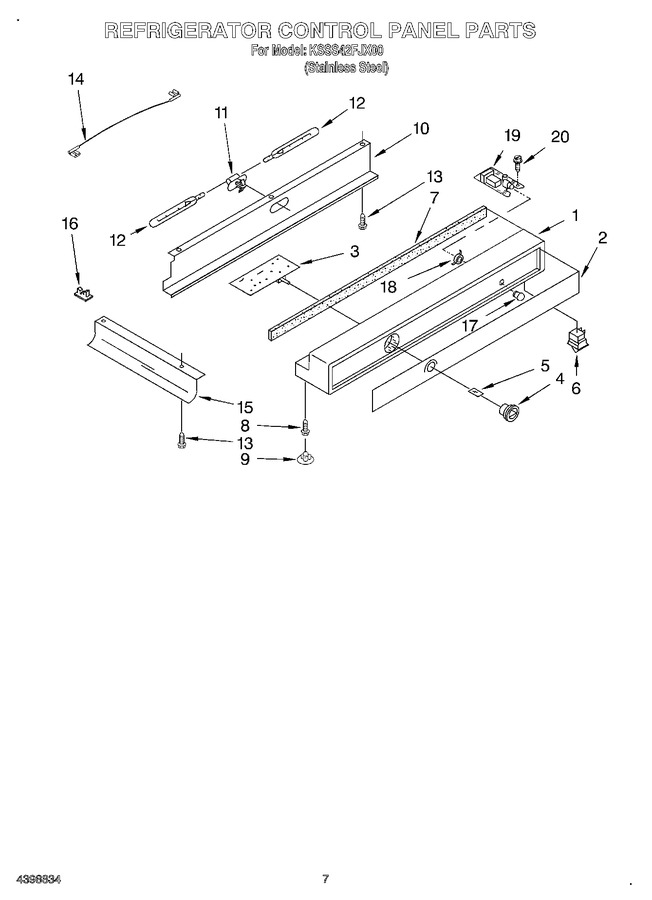

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2209226		Control Panel		Appelez-nous	-
2	2209002		Inlay, Control Panel		Appelez-nous	-
3	2208995		Circuit Board				$ 222.38
4	2003842		Control Knob		Appelez-nous	-
5	2003841		Retainer, Knob		Appelez-nous	-
6	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
7	1113135		Seal, Control Panel		Appelez-nous	-
8	489260		Screw (3)		Appelez-nous	-
9	2000153		Hole Plug (3)		Appelez-nous	-
10	2209173		Shield, Control Panel		Appelez-nous	-
11	2005043		Socket, Light		Appelez-nous	-
12	WP548049		Light Bulb (2)   (Replaces: 548049)				$ 86.35
13	W11624204		Screw   (Replaces: 486194)				$ 14.02
14	2006223		Wire, Light		Appelez-nous	-
15	2001141		Channel, Wiring		Appelez-nous	-
16	1115375		Clip, Wiring (2)				$ 11.15
17	2200096		Lens, Indicator Light				$ 64.10
18	2200097		Retainer, Lens		Appelez-nous	-
19	2203384		Circuit Board, Filter Indicator		Appelez-nous	-
20	2006254		Screw   (Replaces: 489214)				$ 13.13

    View Diagram in Separate Window       Print Part List
