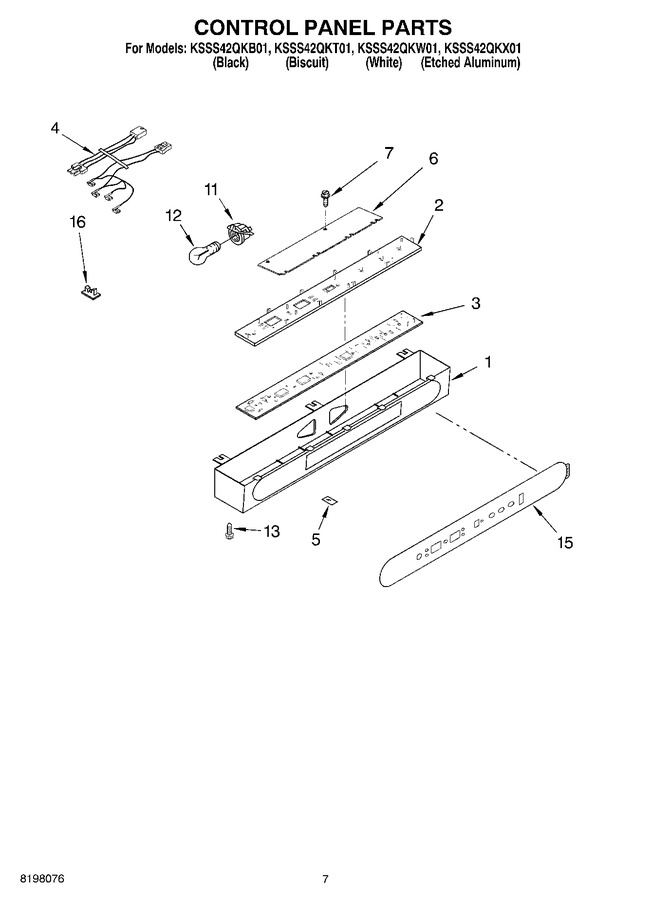

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215716		Control Box		Appelez-nous	-
2	2215670		Insert, Control Box		Appelez-nous	-
3	2209159		Circuit Board, Housing Control		Appelez-nous	-
4	2187424		Control Box Wire Harness		Appelez-nous	-
5	2003841		Retainer, Knob		Appelez-nous	-
6	2221121		Support, Control Box		Appelez-nous	-
7	WP488920		Screw   (Replaces: 489006)				$ 7.49
11	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 110.16
12	W10887190		Light Bulb (2)   (Replaces: 2160708)			Immediately	$ 18.31
13	W11624204		Screw   (Replaces: 486194)				$ 14.02
15	2221066		Overlay		Appelez-nous	-
16	1115375		Clip, Wiring (3)				$ 11.15
