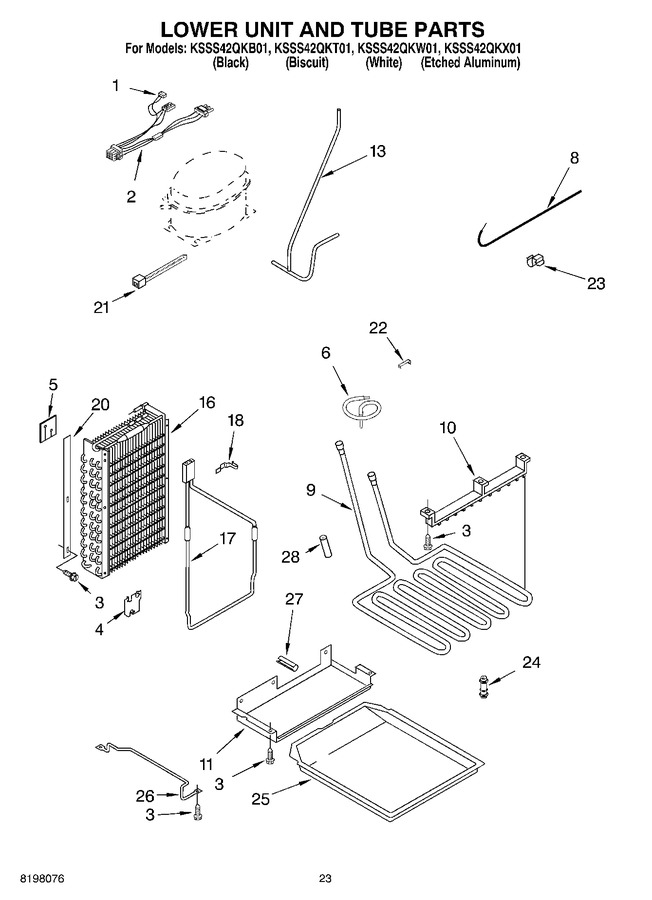

13 - Upper Unit


14 - Lower Unit And Tube


15 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10225581		Defrost Bi-metal   (Replaces: 2196155)			Immediately	$ 50.77
2	2209119		Wire Harness		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2215508		Bracket		Appelez-nous	-
5	2209067		Side Support		Appelez-nous	-
6	2209035		Suction Tube		Appelez-nous	-
8	2209454		Tube, Connect (drier)		Appelez-nous	-
9	2209451		Heater, Drain Pan				$ 169.26
10	2209450		Hanger, Heater		Appelez-nous	-
11	2005908		Shield, Drain Pan		Appelez-nous	-
13	2209036		Tube, Discharge		Appelez-nous	-
16	WP2306093		Evaporator   (Replaces: 2209064)			Immediately	$ 382.84
17	WP2006750		Heater, Defrost   (Replaces: 2006750)				$ 171.66
18	1113048		Clamp, Heater (2)		Appelez-nous	-
20	2220832		Gasket, Evaporator		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 857547)				$ 8.30
22	W10169509		Clip, Heat Exchanger   (Replaces: 2215691)		Appelez-nous	-
23	934011		Clip, Water Tube		Appelez-nous	-
24	2209444		Grommet, Water Tube		Appelez-nous	-
25	WP2001264		Drain Pan   (Replaces: 2001264)				$ 277.18
26	1113206		Bracket, Drain Pan (left)		Appelez-nous	-
26	1113207		Bracket, Drain Pan (right)		Appelez-nous	-
27	WP2158826		Dampener   (Replaces: 513942)				$ 1.82
28	2215648		Damper, Heater				$ 13.21
