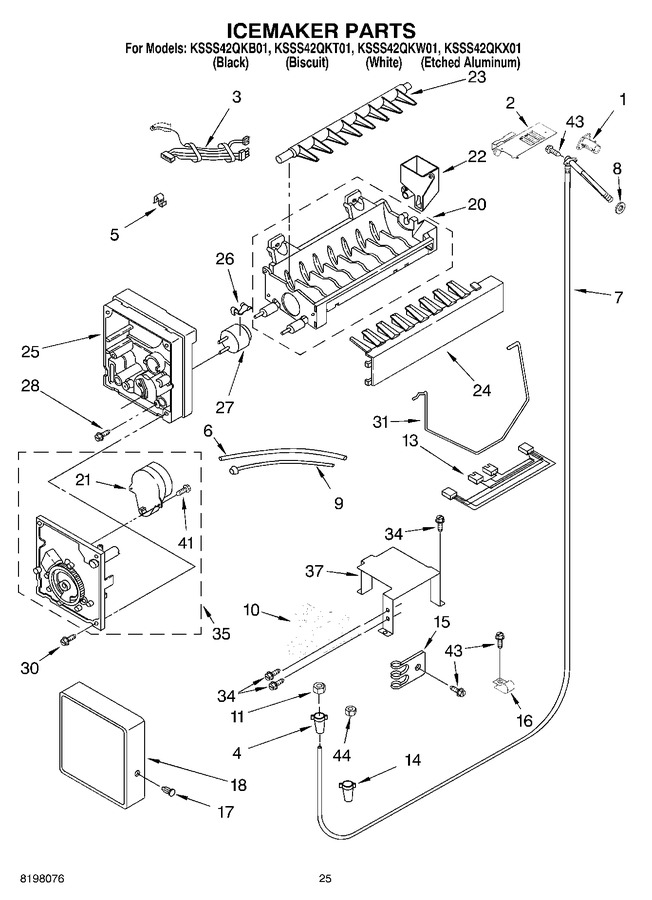

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 206.58 | |||||
| 2 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 89.33 | |||||
| 3 | 2254737 | Wire Assembly, Icemaker |
|
- | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 6 | 2214613 | Tube, Filter Inlet |
|
- | |||||
| 7 | 2221140 | Water Inlet Tube Assembly |
|
- | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 9 | 2209430 | Tube, Filter Outlet |
|
- | |||||
| 10 | WP2188786 | Valve, Solenoid (Replaces: 2221221) |
|
$ 258.92 | |||||
| 11 | 2204357 | Nut Compression |
|
- | |||||
| 13 | 2254727 | Water Valve, Harness |
|
- | |||||
| 14 | 1129177 | Insert, Tube |
|
$ 5.27 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.92 | |||||
| 16 | 488937 | Clamp, Tube |
|
- | |||||
| 17 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 18 | 2221232 | Cover |
|
- | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| 20 | WPW10190929 | Mold & Heater (also Order (Replaces: 628228) |
|
$ 233.15 | |||||
| 21 | W10190935 | Motor (Replaces: 628398) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 2195914) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | 542639 | Cement Alumilastic) |
|
- | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 14.04 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2171593) |
|
Immediately | $ 63.21 | ||||
| 34 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 35 | W10190935 | Module Assembly (includes Items 21 & 41) (Replaces: 628399) |
|
Immediately | $ 110.07 | ||||
| 37 | 2221282 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) |
|
$ 10.80 | |||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 44 | 1129179 | Compresion Nut |
|
- | |||||
| 100 | 2220865 | Front Panel Kit (white) |
|
- | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 183.45 | ||||
| 100 | 978849 | Black Acrylic Static Cleaner |
|
$ 15.82 | |||||
| 100 | 2220871 | Front Panel Kit (biscuit) |
|
- | |||||
| 100 | 2220874 | Front Panel Kit (stainless Steel) |
|
- | |||||
| 100 | 2220868 | Front Panel Kit (black) |
|
- |
