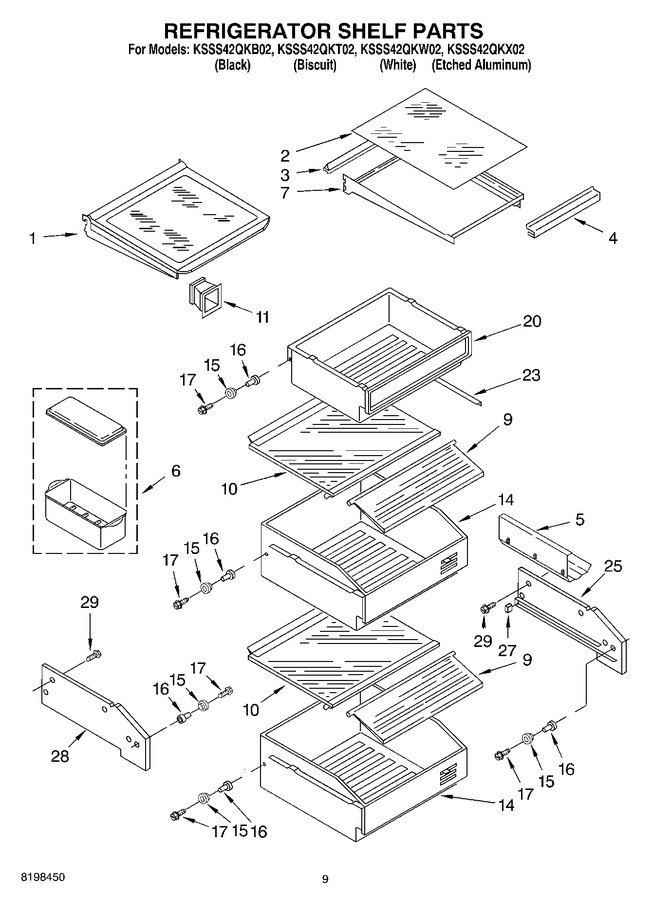

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2174403		Frame, Shelf		Appelez-nous	-
2	2003376		Glass, Shelf		Appelez-nous	-
3	1113547		Reflector, Shelf		Appelez-nous	-
4	1113791		Gasket, Glass (2)		Appelez-nous	-
5	W10777924		Rack, Wine   (Replaces: 2179404)				$ 24.78
6	WP2221071A		Egg Bin   (Replaces: 2221071)				$ 25.79
7	2006524		Frame, Assembly Meat Pan		Appelez-nous	-
9	WP1113894		Cover-crisper   (Replaces: 1113894)				$ 99.21
10	2003379		Glass, Crisper (includes 9)		Appelez-nous	-
11	2000742		Meat Pan, Connector		Appelez-nous	-
14	2220896		Crisper Pan (2)		Appelez-nous	-
15	2188212		Roller		Appelez-nous	-
16	2174478		Eyelet, Roller				$ 5.70
17	WPW10272364		Screw   (Replaces: 2003478)			Immediately	$ 11.36
20	2220902		Meat Pan				$ 79.19
23	2002181		Retainer, Glass		Appelez-nous	-
25	2006515		Crisper Spacer, Right Side (2)				$ 71.96
27	1113169		Stop, Roller				$ 11.28
28	2006516		Crisper Spacer, Left Side (2)				$ 36.51
29	W11624204		Screw   (Replaces: 486194)				$ 14.72
