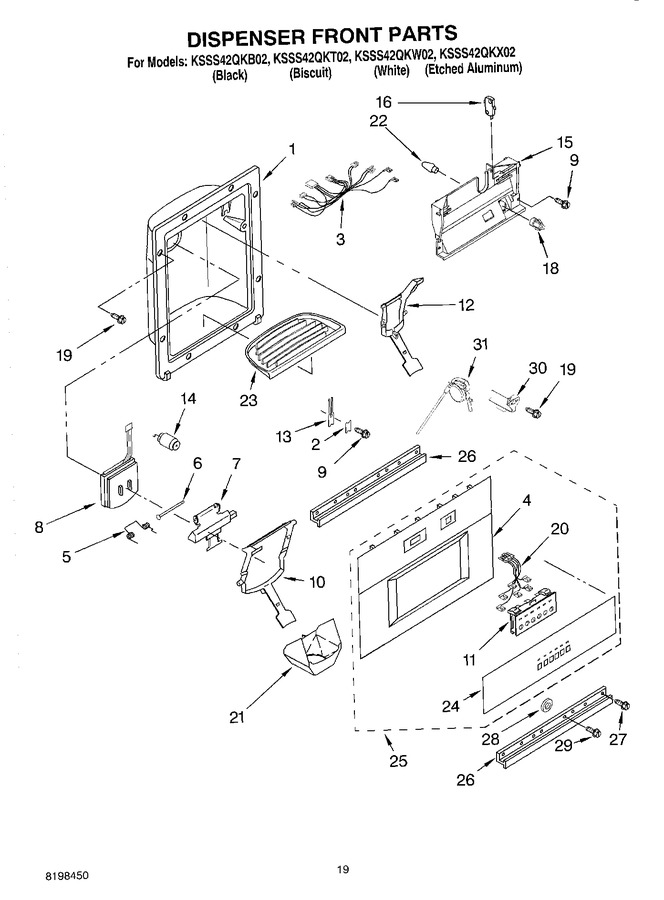

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 3 | 2221203 | Wire Assembly |
|
- | |||||
| 5 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 87.40 | |||||
| 6 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 7 | 2206423 | Ice Door Mechanism |
|
- | |||||
| 8 | WP2180353 | Door, Ice (Replaces: 2180352) |
|
Immediately | $ 26.83 | ||||
| 9 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 10 | 2180259 | Lever, Ice Dispenser (white) |
|
$ 42.12 | |||||
| 10 | 2186850 | Lever, Ice Dispenser (biscuit) |
|
- | |||||
| 10 | 2180261 | Lever, Ice Dispenser (black) |
|
- | |||||
| 11 | WP2180236 | Switch Assembly (Replaces: 2180236) |
|
$ 288.00 | |||||
| 12 | WPW10152858 | Lever, Water Dispenser (white) (Replaces: 2180268) |
|
$ 109.83 | |||||
| 12 | WPW10152858 | Lever, Water Dispenser (biscuit) (Replaces: 2186852) |
|
$ 109.83 | |||||
| 12 | WPW10152859 | Lever, Water Dispenser (black) (Replaces: 2180270) |
|
Immediately | $ 102.82 | ||||
| 13 | WP2194719 | Spring, Lever (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 14 | 2205686 | Delay Mechanism |
|
- | |||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 26.97 | ||||
| 16 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 18 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 19 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 20 | 2311650 | Wire Assembly (Replaces: 2187409) |
|
$ 94.16 | |||||
| 21 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 22 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 23 | 2186860 | Grille, Overflow (biscuit) |
|
- | |||||
| 23 | 2180323 | Grille, Overflow (white) |
|
$ 30.68 | |||||
| 23 | WP2180325 | Grille, Overflow (black) (Replaces: 2180325) |
|
Immediately | $ 72.45 | ||||
| 25 | 2220987B | Front Cover Assembly (includes Items 4, 11, 20 & 24) (black) |
|
- | |||||
| 25 | 2220987W | Front Cover Assembly (includes Items 4, 11, 20 & 24) (white) |
|
- | |||||
| 25 | 2220987T | Front Cover Assembly (includes Items 4, 11, 20 & 24) (biscuit) |
|
- | |||||
| 26 | 2208918 | Trim, Front (2) (white) |
|
- | |||||
| 26 | 2208927 | Trim, Front (2) (black) |
|
- | |||||
| 26 | 2208924 | Trim, Front (2) (biscuit) |
|
- | |||||
| 27 | W10825422 | Screw 8-15 X 1/2 (white) (Replaces: 8281251) |
|
$ 11.36 | |||||
| 27 | WP8281250 | Screw 8-15 X 1/2 (stainless Steel) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 27 | 8281253 | Screw 8-15 X 1/2 (biscuit) |
|
- | |||||
| 27 | W10851443 | Screw 8-15 X 1/2 (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 28 | 487944 | Washer |
|
- | |||||
| 29 | W10759522 | Screw 8-15 X 3/4 (Replaces: 488568) |
|
$ 8.24 | |||||
| 30 | 2221214 | Bracket, Antidrip Valve |
|
- | |||||
| 31 | 2257420 | Valve, Antidrip (includes Tube) |
|
- |
