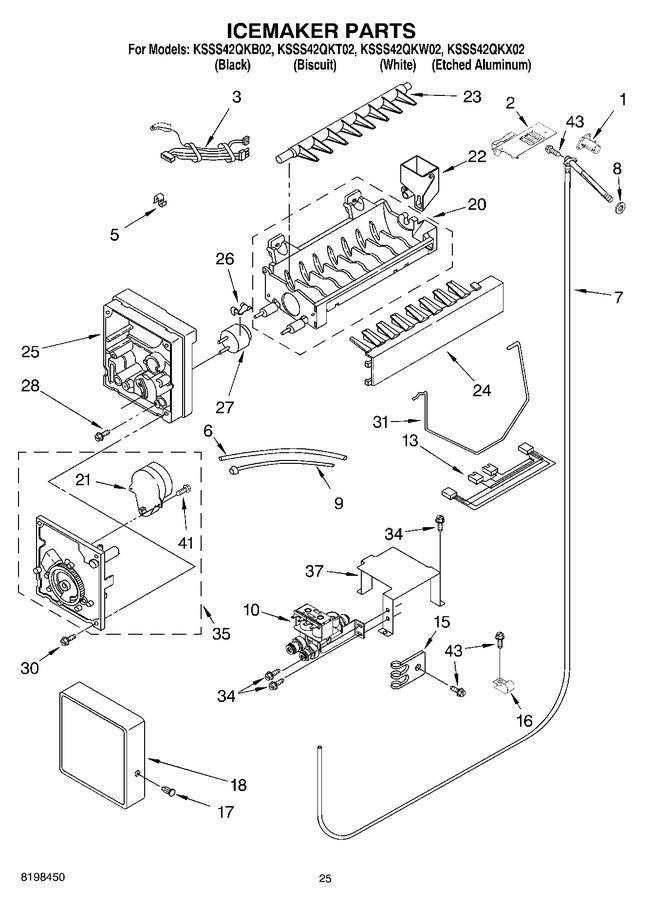

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 196.74 | |||||
| 2 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 85.08 | |||||
| 3 | 2254792 | Wire Assembly, Icemaker |
|
$ 54.13 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | 2214613 | Tube, Filter Inlet |
|
- | |||||
| 7 | 2221140 | Water Inlet Tube Assembly |
|
- | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | 2254800 | Tube, Filter Outlet |
|
- | |||||
| 10 | WP2188786 | Valve, Solenoid (Replaces: 2221221) |
|
$ 246.59 | |||||
| 13 | 2254795 | Water Valve, Harness |
|
- | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 11.18 | |||||
| 16 | 488937 | Clamp, Tube |
|
- | |||||
| 17 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 233.15 | |||||
| 21 | W10190935 | Motor (Replaces: 627811) |
|
Immediately | $ 110.07 | ||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 2194711) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 2195914) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2209675) |
|
Immediately | $ 60.20 | ||||
| 34 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 35 | 8201515 | Module Assembly (includes Items 21 & 41) (Replaces: 626653) |
|
Immediately | $ 141.64 | ||||
| 37 | 2221282 | Water Valve Mounting Bracket |
|
- | |||||
| 41 | 489136 | Screw, (2) |
|
$ 10.29 | |||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 100 | 2220871 | Front Panel Kit Black Acrylic Static Cleaner Part No. 978849 |
|
- | |||||
| 100 | 4317943 | Complete Icemaker Assembly |
|
Immediately | $ 188.95 | ||||
| 100 | N/A | (optional Parts Only) |
|
- | |||||
| 100 | 2220865 | Front Panel Kit (white) |
|
- | |||||
| 100 | 2220868 | Front Panel Kit (black) |
|
- | |||||
| 100 | 2220874 | Front Panel Kit (stainless Steel) |
|
- |
