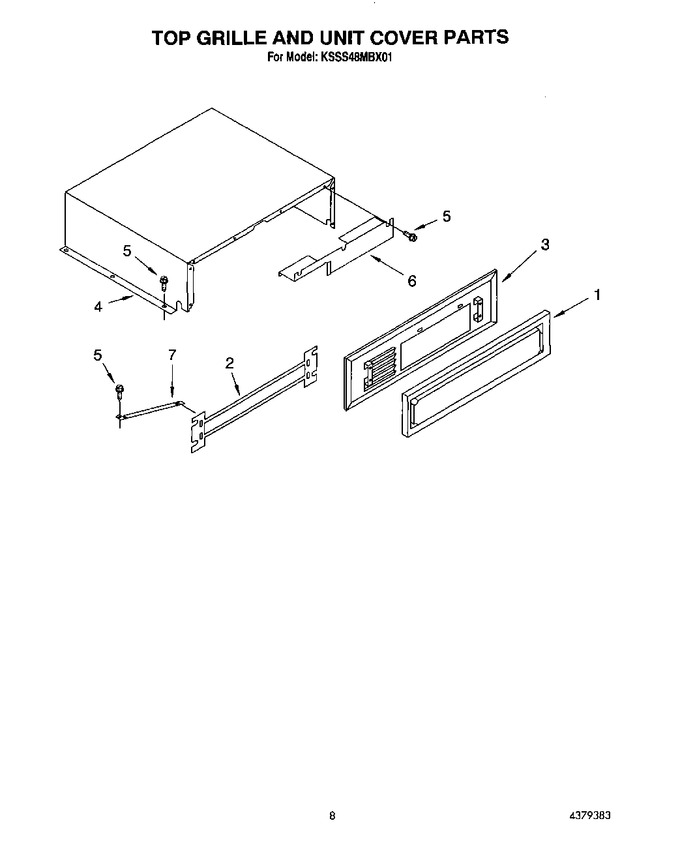

05 - Top Grille And Unit Cover


06 - Refrigerator Shelf


07 - Refrigerator Door


08 - Freezer Door


09 - Upper Unit


10 - Lower Unit And Tube


11 - Air Flow And Reservoir


12 - Icemaker, Literature


13 - Freezer Shelf


14 - Refrigerator Control Panel


15 - Freezer Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001317		Decorative Panel Assembly		Appelez-nous	-
2	1113356		Back Up Panel		Appelez-nous	-
3	2002664		Top Grille Assembly		Appelez-nous	-
4	2001883		Cover, Unit		Appelez-nous	-
5	W11624204		Screw   (Replaces: 486194)				$ 14.72
6	2001874		Cover, Component Assembly		Appelez-nous	-
7	1113317		Brace		Appelez-nous	-
