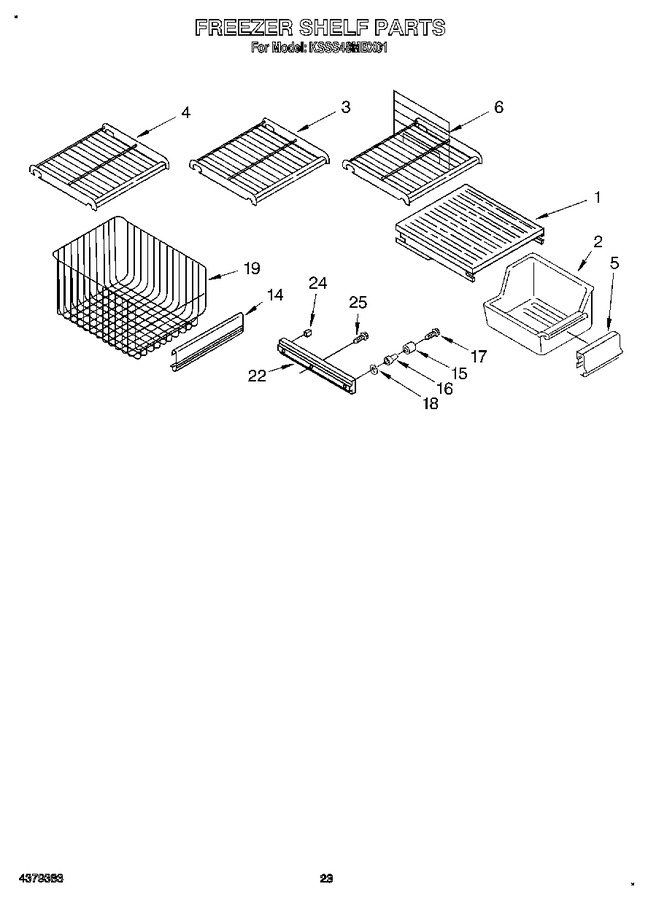

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1113630		Solid Shelf		Appelez-nous	-
2	W11625904		Pan, Ice Cube   (Replaces: 837141)				$ 67.83
3	1112052		Shelf, Fixed		Appelez-nous	-
4	1113638		Shelf, Fixed (2) (large)		Appelez-nous	-
5	1122530		Trim		Appelez-nous	-
6	1113635		Shelf		Appelez-nous	-
14	1113644		Trim, Basket		Appelez-nous	-
15	1113870		Roller		Appelez-nous	-
16	1113871		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
18	488307		Washer		Appelez-nous	-
19	2001626		Basket		Appelez-nous	-
22	2000061		Slide, Basket R.s.		Appelez-nous	-
22	2000062		Slide, Basket L.s.		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw   (Replaces: 486194)				$ 14.72

    View Diagram in Separate Window       Print Part List
