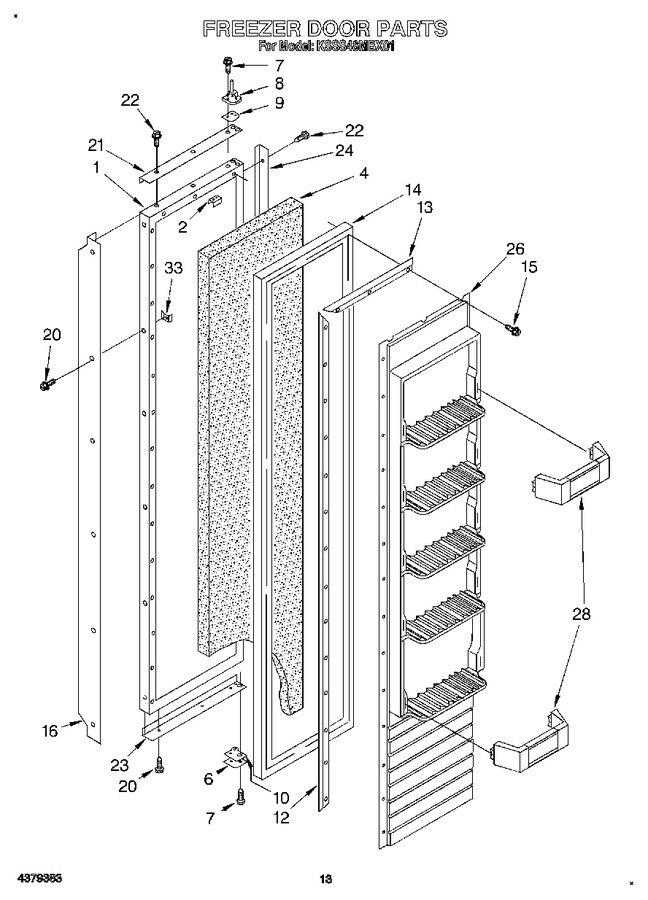

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000716		Exterior Door Panel, Freezer		Appelez-nous	-
2	2002314		Tap, Plate		Appelez-nous	-
4	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
6	2000720		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	2000721		Hinge, Top		Appelez-nous	-
9	2000303		Spacer Plate		Appelez-nous	-
10	2000697		Door, Spacer Bottom		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188319A		Door Gasket, Magnetic   (Replaces: 2000878)			Immediately	$ 332.23
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
16	2000324		Handle, Door		Appelez-nous	-
20	WP488729		Screw   (Replaces: 487052)			Immediately	$ 8.28
21	2000328		Trim (top)		Appelez-nous	-
22	489112		Screw		Appelez-nous	-
23	2000331		Trim (bottom)		Appelez-nous	-
24	2000325		Trim (side)		Appelez-nous	-
26	2000179		Panel, Interior Door		Appelez-nous	-
28	2000606		Door Shelf, Assembly		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
