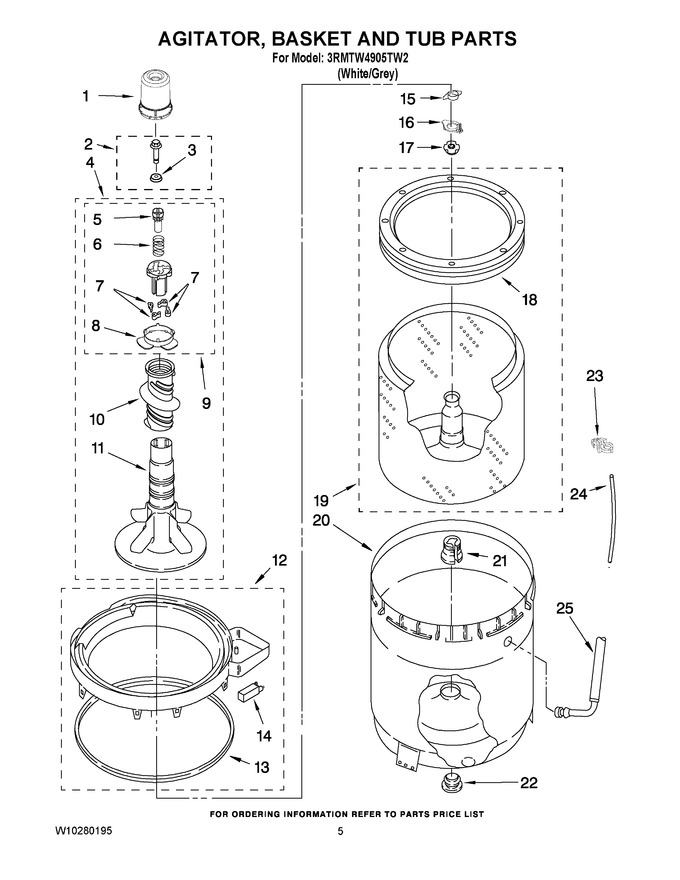

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8528278 | Dispenser, Fabric Softener (Replaces: 8528278) |
|
$ 19.46 | |||||
| 2 | W10772621 | Screw & Washer (5/16-24 X 1) (Replaces: W10003790) |
|
Immediately | $ 5.24 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 11.09 | ||||
| 4 | WP8538246 | Agitator (complete) (Replaces: 8538246) |
|
$ 368.42 | |||||
| 5 | WP8533540 | Retainer, Spring (Replaces: 8533540) |
|
$ 8.24 | |||||
| 6 | WP3946997 | Spring, Compression (Replaces: 3946997) |
|
$ 27.84 | |||||
| 7 | 80040 | Dog, Agitator Clutch (4) (Replaces: 3366877) |
|
Immediately | $ 3.64 | ||||
| 8 | WP8055141 | Bearing-driven Cam (Replaces: 8055141) |
|
Immediately | $ 8.13 | ||||
| 9 | WP8537433 | Cam, Driven (Replaces: 8537433) |
|
Immediately | $ 108.41 | ||||
| 10 | W11480892 | Auger, Agitator (Replaces: 3946996) |
|
Immediately | $ 80.79 | ||||
| 11 | WP3947517 | Agitator (Replaces: 3947517) |
|
$ 204.13 | |||||
| 12 | 3954507 | Tub Ring & Gasket |
|
- | |||||
| 13 | WP3976308 | Gasket, Tub Ring (Replaces: 3359585) |
|
Immediately | $ 29.66 | ||||
| 14 | 8318246 | Wax Motor |
|
- | |||||
| 15 | WP3354845 | Clip, Agitator (Replaces: 3354845) |
|
$ 24.74 | |||||
| 16 | WP8543666 | Washer, Agitator (Replaces: 8543666) |
|
Immediately | $ 12.31 | ||||
| 17 | W10116602 | Nut, Spanner |
|
- | |||||
| 18 | W10006326 | Balance Ring |
|
$ 71.88 | |||||
| 19 | W10006327 | Basket & Balance Ring |
|
$ 143.64 | |||||
| 20 | 63849 | Tub (Replaces: W10135425) |
|
$ 306.29 | |||||
| 21 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 27.49 | ||||
| 22 | W10814296 | Gasket, Centerpost (Replaces: 383727) |
|
Immediately | $ 9.98 | ||||
| 23 | 2219077 | Clip, Pressure Switch Hose |
|
$ 64.24 | |||||
| 24 | WP353244 | Hose, Pressure Switch (Replaces: 3347780) |
|
Immediately | $ 59.93 | ||||
| 25 | 3948705 | Hose, Bleach |
|
$ 19.68 |
