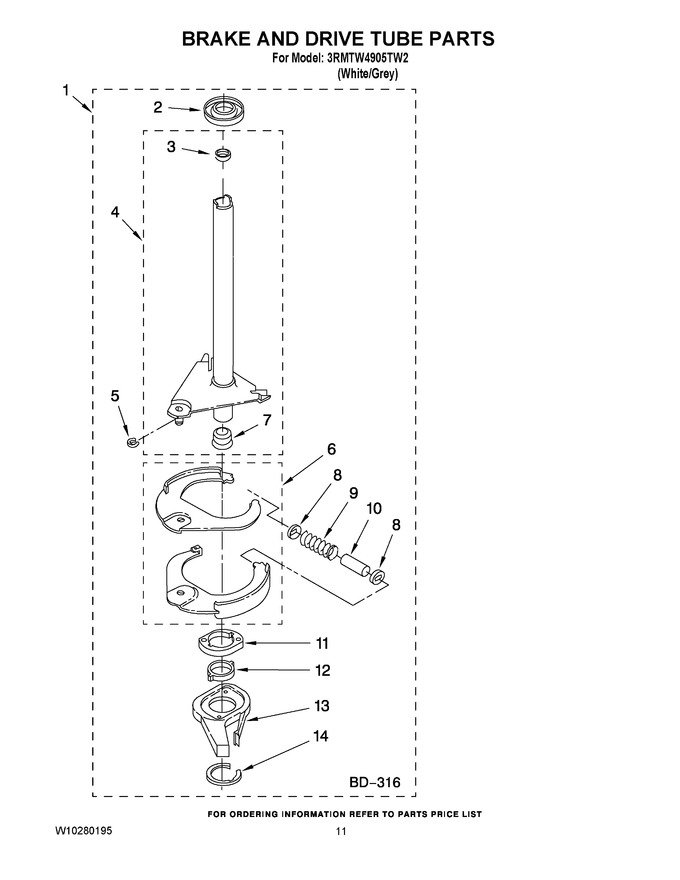

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10117003 | Brake And Drive Tube (complete) (Replaces: W10117003) |
|
$ 371.34 | |||||
| 2 | WP62658 | Ring, Thrust (Replaces: 62658) |
|
Immediately | $ 13.03 | ||||
| 3 | WP356427 | Seal, Drive Tube (Replaces: 356427) |
|
Immediately | $ 7.55 | ||||
| 4 | W10117001 | Tube, Basket Drive |
|
$ 102.06 | |||||
| 5 | W10083190 | Ring, Retaining |
|
$ 11.70 | |||||
| 6 | 285438 | Shoe, Brake (2) (Replaces: W10116995) |
|
$ 144.25 | |||||
| 7 | WP8546462 | ``t`` Bearing Spin Tube (Replaces: 8546462) |
|
Immediately | $ 8.84 | ||||
| 8 | 285658 | Cap, Brake Spring (2) (Replaces: 3353956) |
|
$ 11.21 | |||||
| 9 | 387806 | Spring, Brake |
|
- | |||||
| 10 | 285658 | Sleeve, Brake Spring (Replaces: 3355360) |
|
$ 11.21 | |||||
| 11 | WP8546461 | Cam, Brake Release (Replaces: 8546461) |
|
$ 8.73 | |||||
| 12 | WP63022 | Sleeve, Cam (Replaces: 63022) |
|
$ 48.18 | |||||
| 13 | 285790 | Driver, Brake Cam (Replaces: 64194) |
|
Immediately | $ 43.24 | ||||
| 14 | WPW10083200 | Ring, Retaining (Replaces: W10083200) |
|
$ 12.56 | |||||
| NI | 285208 | Lubricant (use Only In Brake Shoe Assembly On Roller & Pin) |
|
$ 41.86 |
