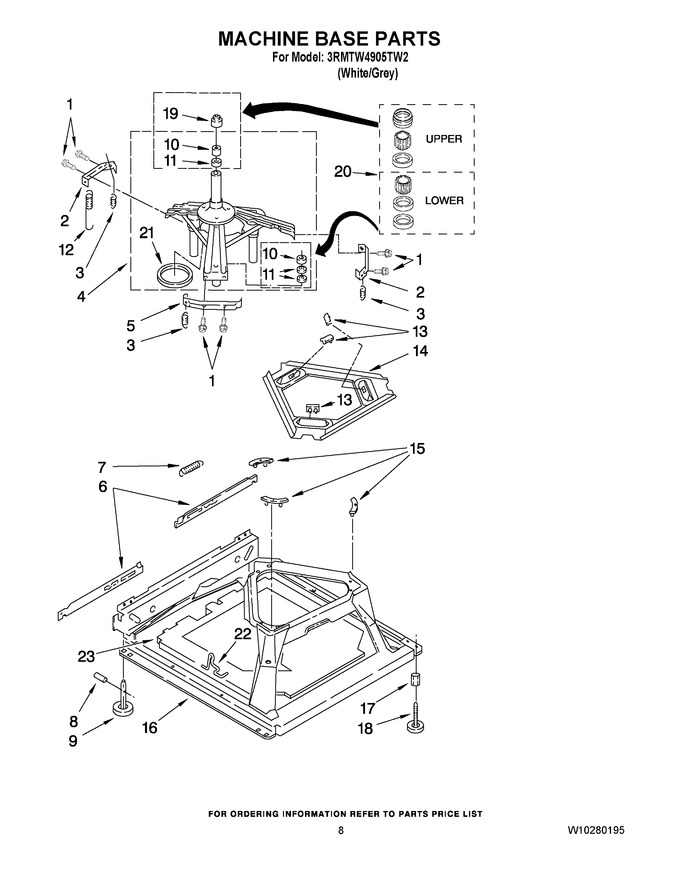

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10080750 | Screw, Bracket Mounting (10-32 X 5/8) |
|
- | |||||
| 2 | WP64067 | Bracket, Spring Outer (2) (Replaces: 64067) |
|
Immediately | $ 8.75 | ||||
| 3 | WP63907 | Spring Suspension,(3) (Replaces: 63907) |
|
Immediately | $ 8.86 | ||||
| 4 | W10117005 | Support & Brake, Tub |
|
- | |||||
| 5 | 100092723 | Bracket, Spring Outer (l.f.) (Replaces: 64065) |
|
$ 463.13 | |||||
| 6 | 63466 | Link, Leveling Mechanism (2) |
|
$ 37.51 | |||||
| 7 | 8316845 | Spring, Leveling Mechanism (Replaces: 62597) |
|
Immediately | $ 7.88 | ||||
| 8 | WP62837 | Pin, Knurled (2) (Replaces: W10080920) |
|
$ 11.27 | |||||
| 9 | W10083250 | Foot, Rear (2) |
|
- | |||||
| 10 | WP8546455 | Bearing, Centerpost (2) (Replaces: 8546455) |
|
Immediately | $ 29.36 | ||||
| 11 | W11095997 | Seal, Centerpost (3) (Replaces: 357409) |
|
Immediately | $ 23.42 | ||||
| 12 | WPW10250667 | Spring, Counterweight (Replaces: W10250667) |
|
Immediately | $ 9.59 | ||||
| 13 | 285219 | Pad, Plate (Replaces: 62568) |
|
Immediately | $ 22.43 | ||||
| 14 | WP3946509 | Plate, Suspension (includes Item 13) (Replaces: 3946509) |
|
$ 211.39 | |||||
| 15 | 285744 | Pad, Base (Replaces: 3363660) |
|
Immediately | $ 18.30 | ||||
| 16 | W10116943 | Base Assembly (includes Items 6, 7, 8, 9, 15 & 22) |
|
- | |||||
| 17 | W10080250 | Nut, Lock (2) (3/8-16) |
|
- | |||||
| 18 | W11177593 | Foot, Front (2) (Replaces: W10080910) |
|
$ 12.18 | |||||
| 19 | WP8577376 | Seal, Centerpost (Replaces: 8577376) |
|
Immediately | $ 7.55 | ||||
| 20 | 285203 | Centerpost Bearing Kit (includes Items 10, 11 & 19) |
|
Immediately | $ 104.95 | ||||
| 21 | WP63134 | Ring, Sound Deadening (Replaces: 63134) |
|
$ 8.58 | |||||
| 22 | WPW10145155 | Retainer, Suspension Spring (Replaces: W10145155) |
|
Immediately | $ 5.26 | ||||
| 23 | 8544816 | Absorber, Sound |
|
- |
