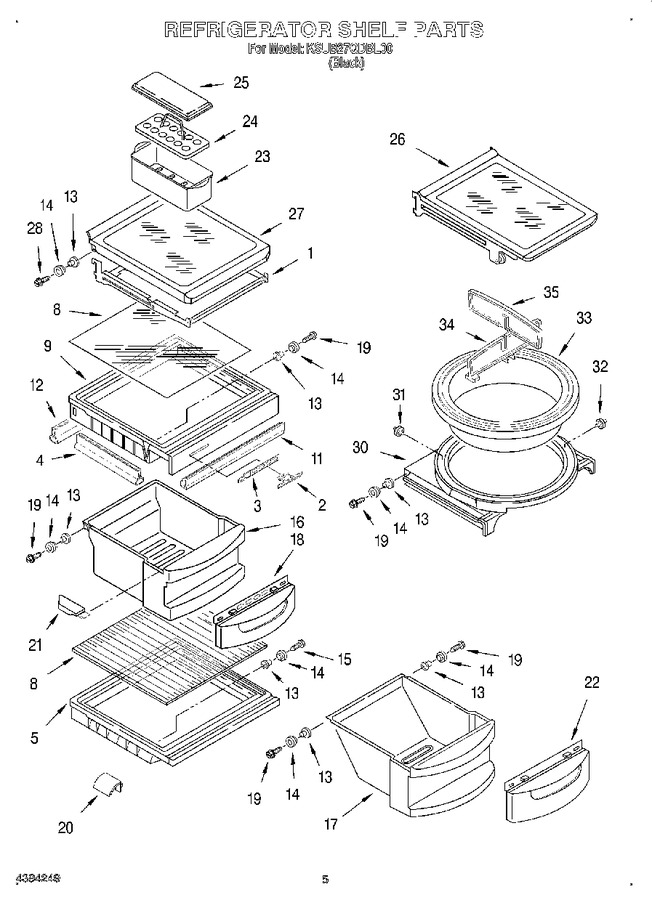

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2174023 | Shelf Assembly, Cantilever (2) |
|
- | |||||
| 2 | 2174253 | Button, Humidity |
|
- | |||||
| 3 | 2174252 | Slide, Humidity |
|
$ 15.93 | |||||
| 4 | 2174273 | Gasket, Side (2) |
|
$ 41.53 | |||||
| 5 | WP2161491 | Cover, Meat Pan (includes Items 13, 14 & 15) (Replaces: 2161491) |
|
$ 237.43 | |||||
| 8 | 2189526 | Glass, Cover |
|
- | |||||
| 9 | 2174250 | Cover, Crisper (includes 2, 3, 4, 11, 12, 13, 14, & 19) |
|
$ 101.40 | |||||
| 11 | WP1125528 | Gasket, (front) (Replaces: 2174272) |
|
$ 161.69 | |||||
| 12 | 2174274 | Gasket, (rear) |
|
$ 41.02 | |||||
| 13 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 14 | 2174388 | Roller |
|
- | |||||
| 15 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 11.36 | ||||
| 16 | WP2179227 | Crisper Pan (includes 13, 14, 18, 19 & 21) (Replaces: 2194094) |
|
$ 224.77 | |||||
| 17 | 2179231 | Meat Pan (includes 13, 14, 19, & 22) |
|
- | |||||
| 18 | 2194093 | Window, Crisper |
|
- | |||||
| 19 | WP489261 | Screw (Replaces: 489261) |
|
$ 8.33 | |||||
| 20 | 2176095 | Deflector |
|
$ 91.67 | |||||
| 21 | 2174259 | Cap, Crisper Pan (right Side) |
|
- | |||||
| 21 | 2174258 | Cap, Crisper Pan (left Side) |
|
- | |||||
| 22 | WP2174362 | Window, Meat Pan (Replaces: 2174362) |
|
$ 179.76 | |||||
| 23 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 19.54 | |||||
| 24 | WP2177817 | Egg Carrier (Replaces: 2164373) |
|
$ 18.78 | |||||
| 25 | 2169935 | Cover |
|
- | |||||
| 26 | 2174387 | Frame And Roller Asm. (cantilever) |
|
- | |||||
| 27 | 2174021 | Shelf & Roller Assembly |
|
- | |||||
| 28 | 489439 | Screw |
|
- | |||||
| 30 | 2168792 | Carriage |
|
- | |||||
| 31 | 2179486 | Roller, Front (2) |
|
- | |||||
| 32 | 2179487 | Roller, Rear (2) |
|
- | |||||
| 33 | 2168793 | Round Pan |
|
- | |||||
| 34 | 2174363 | Divider, 1/2 |
|
- | |||||
| 35 | 2174364 | Divider, 1/4 |
|
- |
