SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Freezer Liner


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Airflow, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

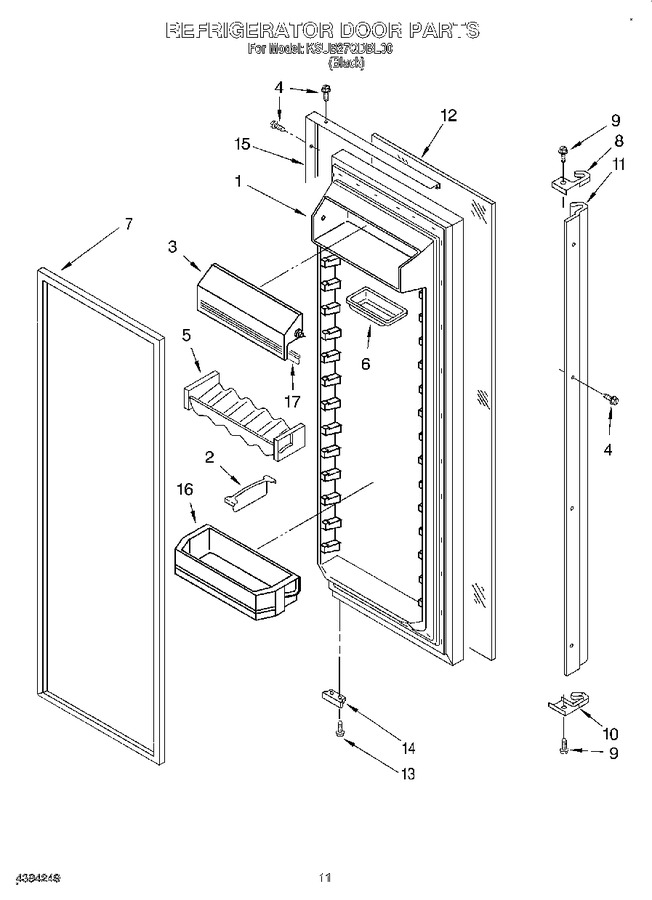

1	2189690		Refrigerator Door (includes Item 7)		Appelez-nous	-
2	2171283		Load Lock		Appelez-nous	-
3	2194092		Door, Compartment		Appelez-nous	-
4	489376		Screw		Appelez-nous	-
5	1125981		Holder, Beverage		Appelez-nous	-
6	1125936		Butter, Tray		Appelez-nous	-
7	2159083		Door Gasket, Magnetic (service)				$ 251.49
8	1126074		End Cap		Appelez-nous	-
9	489112		Screw		Appelez-nous	-
10	1126073		End Cap		Appelez-nous	-
11	1126070		Handle		Appelez-nous	-
12	1126015		Black Glass		Appelez-nous	-
13	WP999367		Screw   (Replaces: 489367)				$ 8.56
14	2155331		Bracket, Door Stop		Appelez-nous	-
15	1117901		Trim, Door		Appelez-nous	-
16	2171062		Shelf Bin (4)				$ 40.08
17	2159124		Gasket, Door Compartment		Appelez-nous	-
