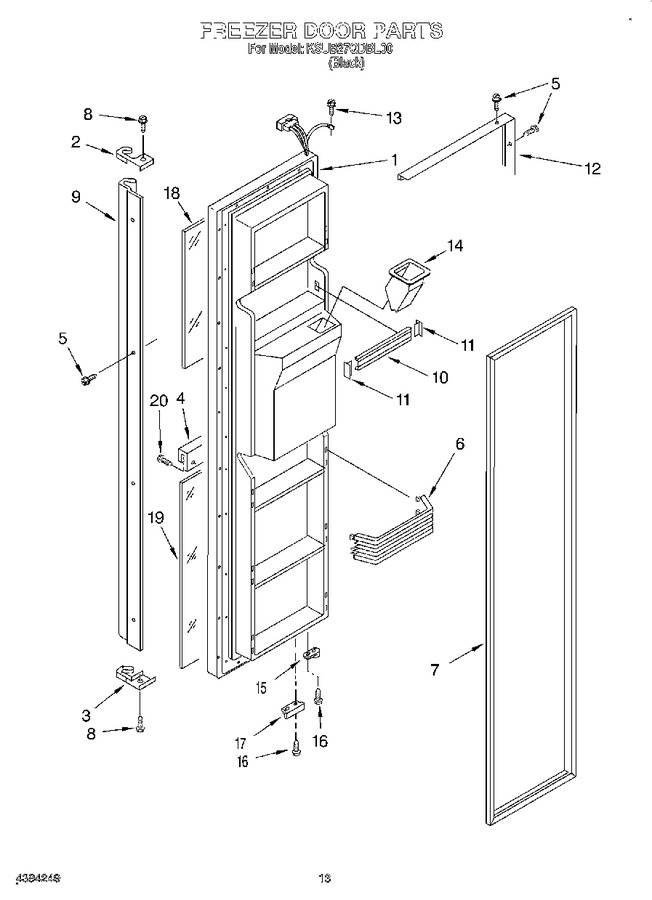

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2189706		Freezer Door (includes Item 7 And Dispenser Front Parts)		Appelez-nous	-
2	1126073		End Cap		Appelez-nous	-
3	1126074		End Cap		Appelez-nous	-
4	1125980		Trim, Dispenser		Appelez-nous	-
5	489376		Screw		Appelez-nous	-
6	2171070		Shelf Bin (4)		Appelez-nous	-
7	2159082		Door Gasket, Magnetic (service)				$ 332.49
8	489112		Screw		Appelez-nous	-
9	1126070		Handle		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2177845)			Immediately	$ 24.27
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 12.79
12	1126072		Trim, Door		Appelez-nous	-
13	WP488234		Screw   (Replaces: 489422)				$ 7.08
14	2156145		Chute, Ice		Appelez-nous	-
15	4318165		Door Closer, Upper Cam   (Replaces: 2155312)			Immediately	$ 29.74
16	WP999367		Screw   (Replaces: 489367)				$ 8.56
17	2155331		Bracket, Door Stop		Appelez-nous	-
18	1126016		Black Glass, Upper		Appelez-nous	-
19	1126017		Black Glass, Lower		Appelez-nous	-
20	489374		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
