SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Water Distribution


13 - Racks

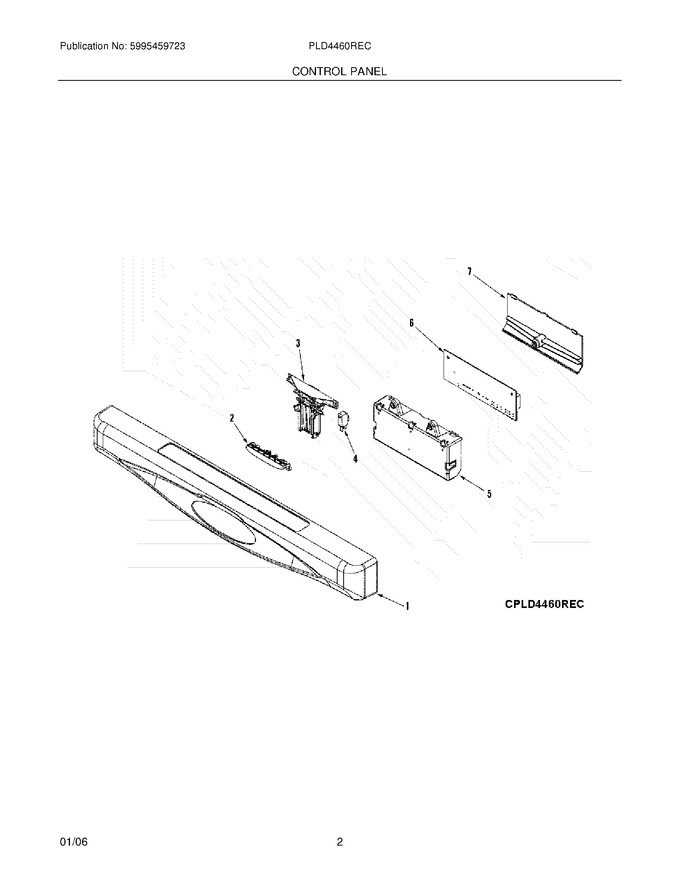

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304454279		Panel,control ,black		Appelez-nous	-
3	5304452062		Latch Assembly		Appelez-nous	-
5	5304452514		Housing,control Board ,base				$ 33.72
7	5304452515		Housing,control Board ,top				$ 52.52
F4	5304452043		Switch,door ,(2)				$ 74.42
F6	5304454280		Board,control		Appelez-nous	-
NI	5304452586		Harness,wiring ,main				$ 162.30
NI	5304454328		Energy Guide		Appelez-nous	-
NI	5304452520		Screw,mounting ,(6)				$ 11.37

    View Diagram in Separate Window       Print Part List
