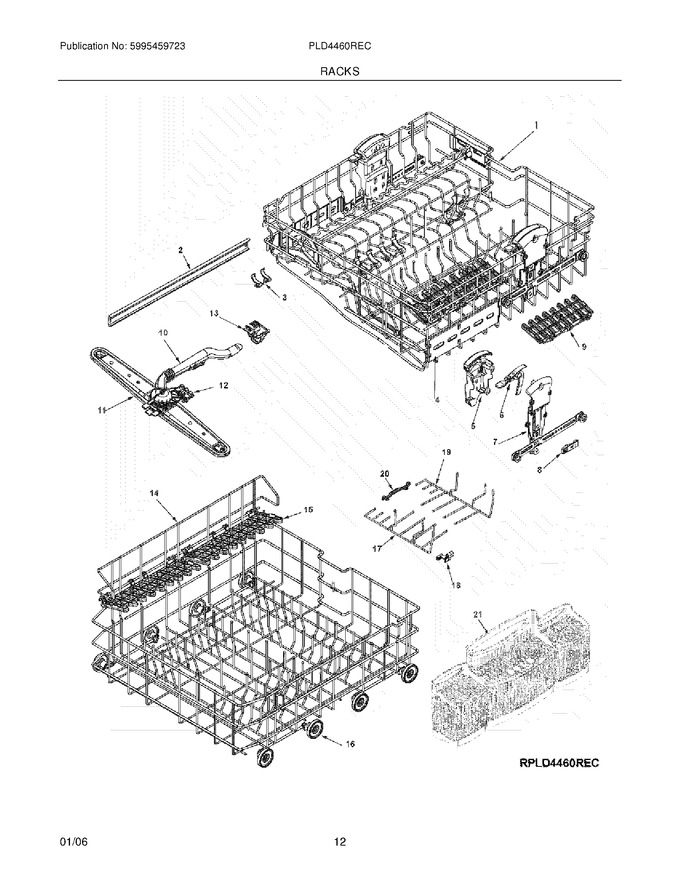

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304454302		Rack Assembly,upper		Appelez-nous	-
2	5304452593		Rail,slide ,inner ,(2)				$ 126.59
3	5304454306		Clip,cup ,gray				$ 18.85
4	5304454308		Guard,upper Rack ,low Side		Appelez-nous	-
4	5304454307		Guard,upper Rack ,high Side		Appelez-nous	-
5	5304454309		Cover,adjuster ,upper Rack ,(2)		Appelez-nous	-
6	5304454310		Lever,adjuster ,upper Rack ,(2)		Appelez-nous	-
7	5304454312		Rack Adjuster,assembly ,rh				$ 216.66
7	5304454311		Rack Adjuster,assembly ,lh		Appelez-nous	-
8	5304454313		Stabilizer,rack Adjuster		Appelez-nous	-
9	5304454314		Shelf,cup ,upper Rack		Appelez-nous	-
10	5304454315		Wash Arm,upper				$ 59.10
11	5304454316		Manifold Assembly,wash ,upper				$ 132.67
12	5304454317		Clip,manifold Assy ,front		Appelez-nous	-
13	5304454318		Clip,manifold Assy ,back				$ 41.95
14	5304454319		Rack Assembly,lower		Appelez-nous	-
15	5304454320		Shelf,cup ,lower Rack ,(2)		Appelez-nous	-
16	5304454322		Wheel Assembly,lower Rack ,(8)				$ 52.21
17	5304454323		Tine,folding ,long ,lower ,(4)		Appelez-nous	-
18	5304454324		Clip,folding Tine ,gray ,(18)		Appelez-nous	-
19	5304454325		Tine,folding ,short ,lower ,(2)		Appelez-nous	-
20	5304452597		Pivot,tine				$ 43.21
21	5304454326		Basket,silverware		Appelez-nous	-
NI	5304454321		Clip,cup Shelf ,(4)		Appelez-nous	-
NI	5304452602		Screw,8 - 18 X 1/2 ,(11)		Appelez-nous	-
NI	5304454305		Stop,rail ,gray ,(4)				$ 44.65
NI	5304452594		Bearing,ball ,(8)		Appelez-nous	-
NI	5304452050		Cage,ball Bearing ,(2)				$ 44.80
NI	5304454304		Handle,upper Rack ,back		Appelez-nous	-
NI	5304454303		Handle,upper Rack ,front		Appelez-nous	-
NI	5304454327		Cap,rack ,gray ,upper And Lower ,(2)		Appelez-nous	-
