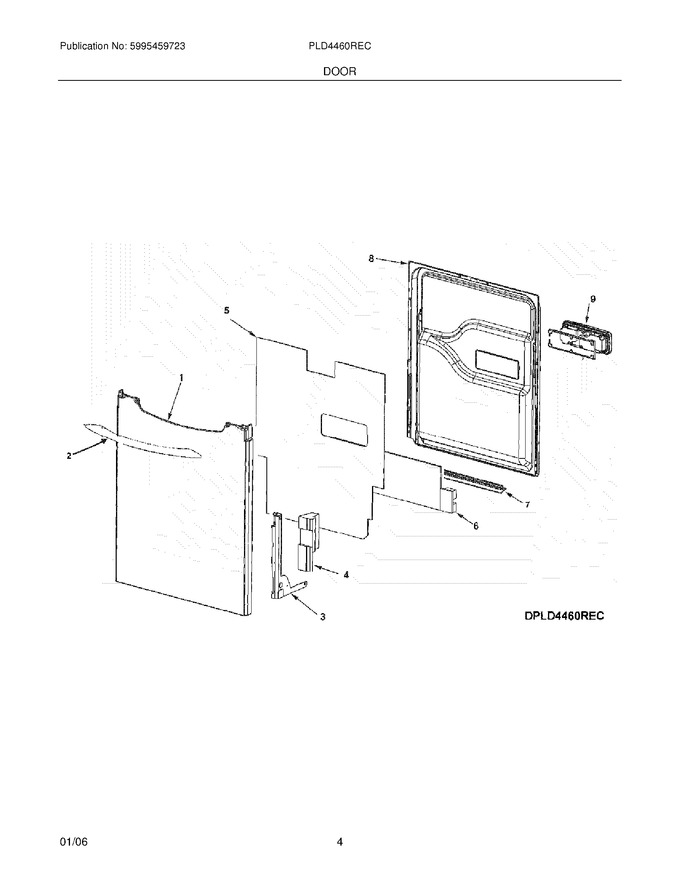

05 - Door


07 - Tub


09 - Motor & Pump


11 - Water Distribution


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304454281		Panel,door ,stainless ,outer		Appelez-nous	-
2	5304454282		Bar,towel ,stainless				$ 256.08
3	5304452507		Bracket,hinge ,lh		Appelez-nous	-
3	5304452508		Bracket,hinge ,rh		Appelez-nous	-
5	5304452516		Insulation,door		Appelez-nous	-
6	5304452513		Barrier,foam		Appelez-nous	-
7	5304452049		Seal,door ,bottom				$ 85.74
8	5304452053		Liner,door ,w/damper		Appelez-nous	-
F9	5304507354		Dispenser,detergent ,w/rinse Aid   (Replaces: 5304454285)			Immediately	$ 81.98
NI	5304452520		Screw,mounting ,(6)				$ 11.37
NI	5304454284		Nut,w/washer ,assembly		Appelez-nous	-
NI	5304454283		Washer,fender		Appelez-nous	-
NI	5304452512		Block,foam ,lh		Appelez-nous	-
NI	5304452511		Block,foam ,rh		Appelez-nous	-
NI	5304452509		Screw,hinge Bracket ,(4)		Appelez-nous	-
NI	5304452510		Wrap,foam ,(2)				$ 42.80
NI	218781101		Screw,door Liner ,(10)   (Replaces: 5304452517)				$ 15.60
NI	5304452519		Bracket,dispenser ,(2)		Appelez-nous	-
