SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door Assembly


04 - Internal Controls


05 - Oven


06 - Supplemental Information


07 - Surface Burner Assembly


08 - Top/burner Valves

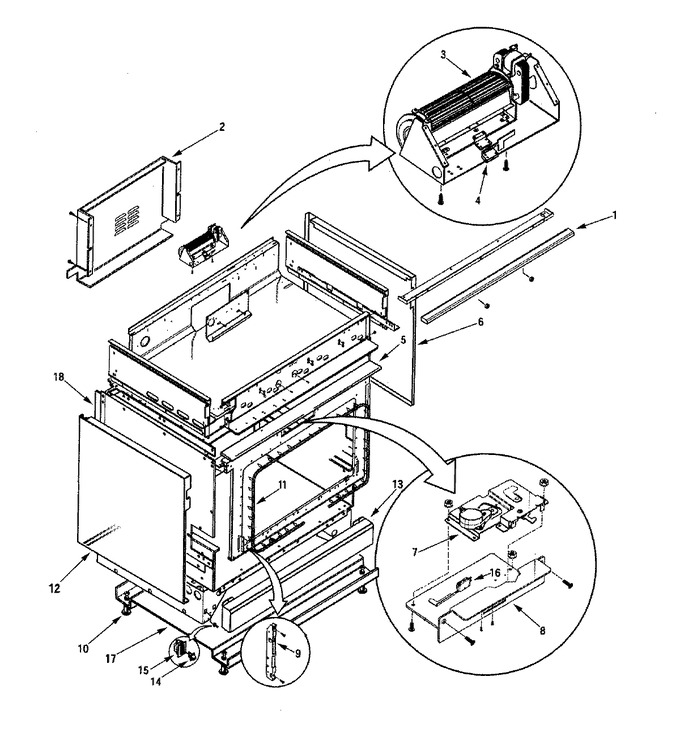

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001353		Handle, Drip Pan	10	Appelez-nous	-
2	73001610		Housing, Motor	10	Appelez-nous	-
3	73001272		Motor, Blower	10	Appelez-nous	-
4	73001273		Switch, Air Interlock	10	Appelez-nous	-
5	73001352		Sheild, Heat	10	Appelez-nous	-
6	73001382		Panel, Side (rt)	10	Appelez-nous	-
7	73001339		Latch Assembly	10			$ 178.59
8	73001590		Cover, Latch	10	Appelez-nous	-
9	73001063		Receptacle, Hinge	10	Appelez-nous	-
10	73001083		Leg, Leveling	10	Appelez-nous	-
11	73001056		Gasket, Door (27``)	10	Appelez-nous	-
12	73001383		Panel, Side (lt)	10	Appelez-nous	-
13	73001384		Panel, Kick	10	Appelez-nous	-
14	73001061		Strike (male)	10	Appelez-nous	-
15	73001064		Catch (female)	10	Appelez-nous	-
16	73001587		Switch, Micro	10			$ 117.54
17	73001514		Plate, Base	10	Appelez-nous	-
18	73001366		Retainer, Insulation (rt)	10	Appelez-nous	-
18	73001367		Retainer, Insulation (lt)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
