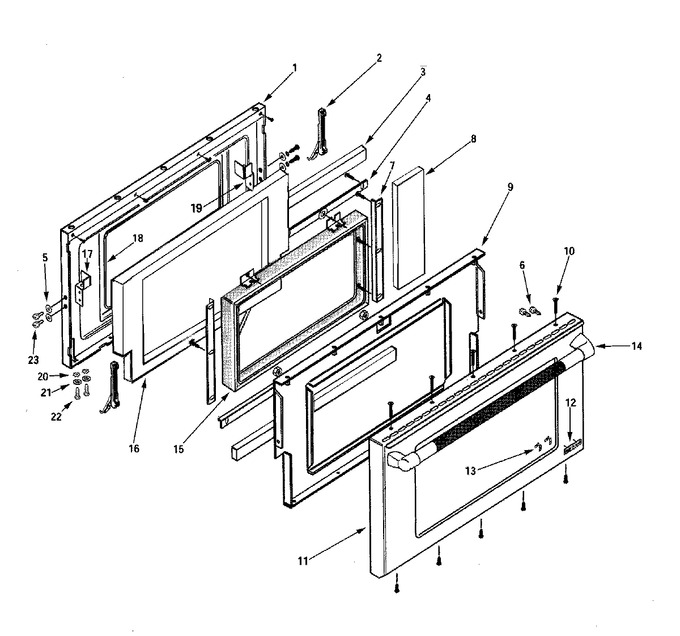

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10322394		Liner, Door Serial No. 10002663lp And After		Appelez-nous	-
1	73001268		Liner, Door	10	Appelez-nous	-
2	73001109		Hinge, Door (27``)	10			$ 137.81
2	W10298135		Hinge, Door (27`) Serial No. 10002663lp And After		Appelez-nous	-
3	73001266		Insulation, Door	10	Appelez-nous	-
4	73001498		Bracket, Compression (upr/lwr)	10	Appelez-nous	-
5	73001596		Washer (flat 3/4``)	10	Appelez-nous	-
6	WPW10031790		Screw (no.10 X 1/2)   (Replaces: 73001557)	10		Immediately	$ 7.87
7	73001497		Bracket, Compression (side)	10	Appelez-nous	-
8	73001264		Insulation, Door	10	Appelez-nous	-
9	73001263		Retainer, Door Insulation Asy	10	Appelez-nous	-
10	73001258		Screw (8-32 X 1``)-10 Pack	10	Appelez-nous	-
11	73001267		Panel/glass Assembly	10	Appelez-nous	-
12	73001260		Nameplate	10	Appelez-nous	-
13	73001259		Clip, Nameplate	10	Appelez-nous	-
14	73001261		Handle, Door	10	Appelez-nous	-
15	W10324641		Window Pack Serial No. 10002663lp And After		Appelez-nous	-
15	73001257		Window Pak	10	Appelez-nous	-
16	73001265		Insulation, Door	10	Appelez-nous	-
17	73001262		Bracket, Hinge (lt)	10			$ 44.39
18	73001256		Gasket, Window	10	Appelez-nous	-
19	73001517		Bracket, Hinge (rt)	10			$ 59.19
20	73001595		Washer (tooth No.10)	10	Appelez-nous	-
21	73001542		Washer (no.10 7/16``)	10	Appelez-nous	-
22	WPW10001180		Screw (no.10-24 X 1/2)   (Replaces: 73001558)	10			$ 8.05
23	73001131		Screw (no.10 X 3/4)	10	Appelez-nous	-
