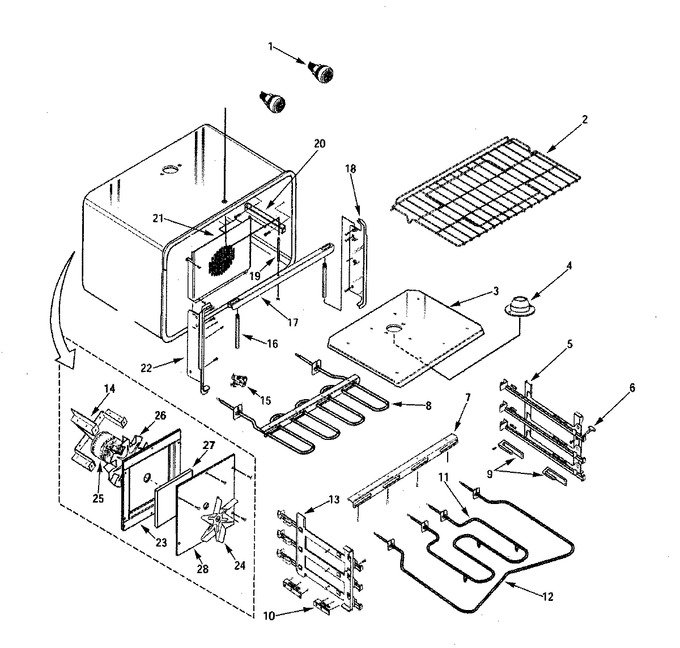

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74011278 | Light Assy., Oven (Replaces: 73001071) | 10 |
|
$ 106.63 | ||||
| 2 | 73001237 | Rack, Oven | 10 |
|
- | ||||
| 3 | 73001612 | Reflector | 10 |
|
- | ||||
| 4 | 73001232 | Catalyst | 10 |
|
$ 35.62 | ||||
| 5 | 73001253 | Rack Slide Assembly (rt) | 10 |
|
$ 471.74 | ||||
| 6 | 73001254 | Screw, Thumb | 10 |
|
- | ||||
| 7 | 73001238 | Bracket, Element | 10 |
|
- | ||||
| 8 | 73001235 | Element, Broil | 10 |
|
- | ||||
| 9 | 73001246 | Bracket, Interlock (rt) | 10 |
|
- | ||||
| 10 | 73001245 | Bracket, Interlock (lt) | 10 |
|
- | ||||
| 11 | 73001236 | Element, Bake (inner0 | 10 |
|
$ 113.53 | ||||
| 12 | 73001232 | Catalyst | 10 |
|
$ 35.62 | ||||
| 13 | 73001252 | Rack Slide Assembly (lt) | 10 |
|
$ 471.74 | ||||
| 14 | 73001243 | Bracket, Motor | 10 |
|
- | ||||
| 15 | 73001233 | Switch, Limit | 10 |
|
$ 81.91 | ||||
| 16 | 73001247 | Rod, Push 3/8`` (interlock) | 10 |
|
- | ||||
| 17 | 73001250 | Channel, Lift (interlock) | 10 |
|
- | ||||
| 18 | 73001249 | Guard, Edge (rt) | 10 |
|
- | ||||
| 19 | 73001255 | Push Rod, Interlock Switch | 10 |
|
- | ||||
| 20 | 73001594 | Support, Capillary | 10 |
|
- | ||||
| 21 | 73001251 | Baffle, Oven | 10 |
|
- | ||||
| 22 | 73001248 | Guard, Edge (lt) | 10 |
|
- | ||||
| 23 | 73001244 | Insulation, Motor Pad | 10 |
|
- | ||||
| 24 | 73001125 | Blade, Convection | 10 |
|
- | ||||
| 25 | 73001069 | Motor, Convection | 10 |
|
- | ||||
| 26 | 73001072 | Blade, Cooling | 10 |
|
- | ||||
| 27 | 73001241 | Pad, Insul. Motor | 10 |
|
- | ||||
| 28 | 73001242 | Cover, Motor Pad | 10 |
|
- |
