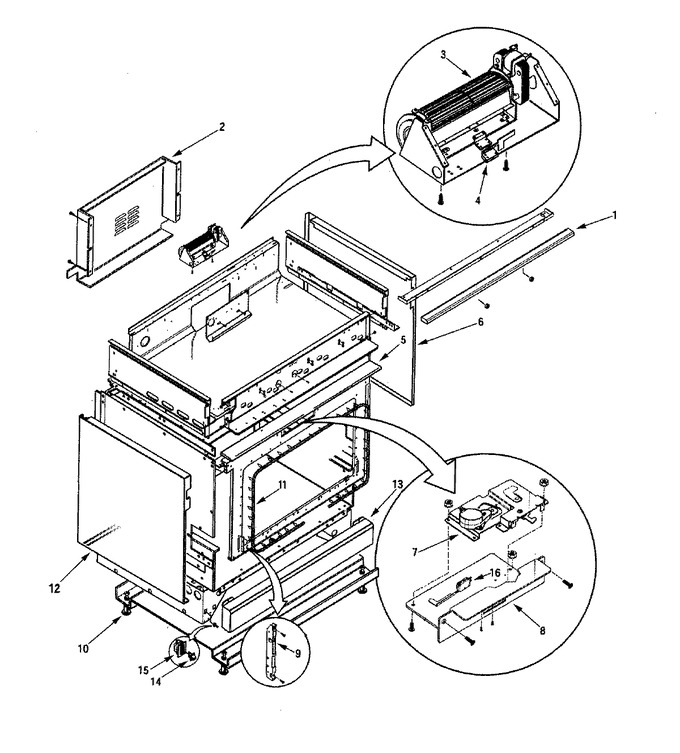

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001588		Handle, Drip Pan	10	Appelez-nous	-
2	73001610		Housing, Motor	10	Appelez-nous	-
3	73001555		Motor, Blower	10	Appelez-nous	-
4	73001273		Switch, Air Interlock	10	Appelez-nous	-
5	73001494		Shield, Heat (lwr)	10	Appelez-nous	-
6	73001490		Panel, Side (rt)	10	Appelez-nous	-
7	73001589		Latch Assembly	10			$ 232.38
8	73001590		Cover, Latch	10	Appelez-nous	-
9	73001063		Receptacle, Hinge	10	Appelez-nous	-
10	73001083		Leg, Leveling	10	Appelez-nous	-
11	73001056		Gasket, Door (27``)	10	Appelez-nous	-
12	73001491		Panel, Side (lt)	10	Appelez-nous	-
13	73001489		Kickplate	10	Appelez-nous	-
14	73001061		Strike (male)	10	Appelez-nous	-
15	73001064		Catch (female)	10	Appelez-nous	-
16	73001587		Switch, Micro	10			$ 117.54
