Diagram for 08 - Top/burner Valves
08 - Top/burner Valves


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 73001579 Top, Main 10 Appelez-nous -
2 73001580 Ledge, Landing 10 Appelez-nous -
3 73001322 Transformer 10 Appelez-nous -
4 73001066 Block, Terminal 10 Appelez-nous -
5 WP73001323 Module, Reignition   (Replaces: 73001323) 10 Special Order $ 357.35

6 73001361 Bolt (10-32x1) 10 Appelez-nous -
7 73001314 C-clip, Valve Stem 10 Special Order $ 26.16

8 73001358 Clamp, Valve 10 Appelez-nous -
9 73001581 Pipe, Manifold 10 Appelez-nous -
10 W10625027 Valve, Burner (nat)   (Replaces: 73001359) 10 Special Order $ 300.74

11 WP73001321 Switch, Igniter   (Replaces: 73001321) 10 Special Order $ 136.80

12 73001360 Valve, Burner (nat) W/switch 10 Special Order $ 214.38

13 73001515 Elbow, Pipe 10 Appelez-nous -
14 73001126 Regulator, Pressure 10 Special Order $ 129.64

15 73001379 Pipe Nipple (1/2 Npt) 10 Appelez-nous -
16 73001478 Valve, Shut-off 10 Appelez-nous -
17 73001381 Elbow/plate Assembly 10 Appelez-nous -
18 73001447 Elbow (1/2-1/2 F) 10 Appelez-nous -
19 73001446 Pipe (1/2) 10 Appelez-nous -
20 73001461 Fitting (1/2 F-5/8 Tube) 10 Appelez-nous -
21 73001591 Tubing, Mnfd Pipe/regulator 10 Appelez-nous -
22 73001380 Pipe, Intake 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

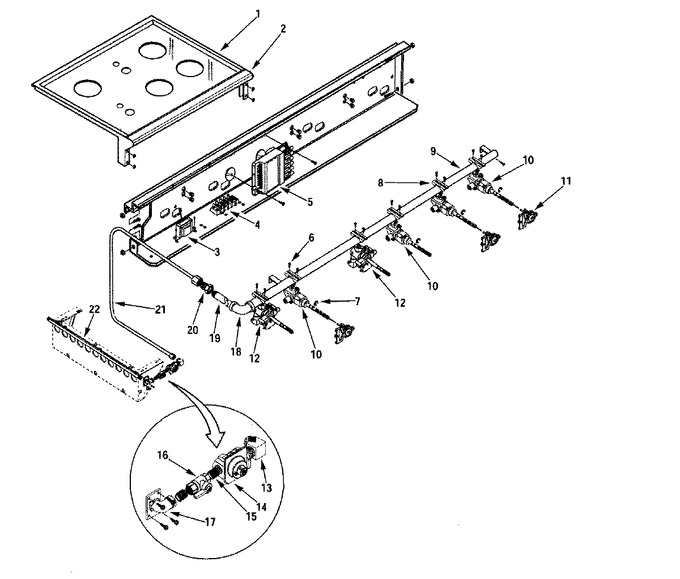

Diagram for PRD3630NP
