Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 73001318 Switch, Push Button 10 Special Order $ 261.95

2 73001575 Thermostat, Oven 10 Special Order $ 716.71

3 73001319 Thermostat, Blower 10 Appelez-nous -
4 73001576 Support, Thermostat 10 Appelez-nous -
5 73001308 Light, Indicator 10 Appelez-nous -
6 73001074 Switch, Light 10 Appelez-nous -
7 73001317 Button, Push 10 Appelez-nous -
8 73001303 Bezel, Knob (t-stat) 10 Special Order $ 59.19

9 73001577 Knob, Thermostat 10 Appelez-nous -
10 WPW10175695 Knob, Burner   (Replaces: 73001301) 10 In-Stock Immediately $ 26.03

11 73001305 Bezel, Knob (simmer) 10 Special Order $ 38.69

12 73001258 Screw (8-32 X 1``)-10 Pack 10 Appelez-nous -
13 73001578 Panel, Control 10 Appelez-nous -
14 73001304 Bezel, Knob (burner) 10 Special Order $ 42.42


    View Diagram in Separate Window     Print Icon   Print Part List

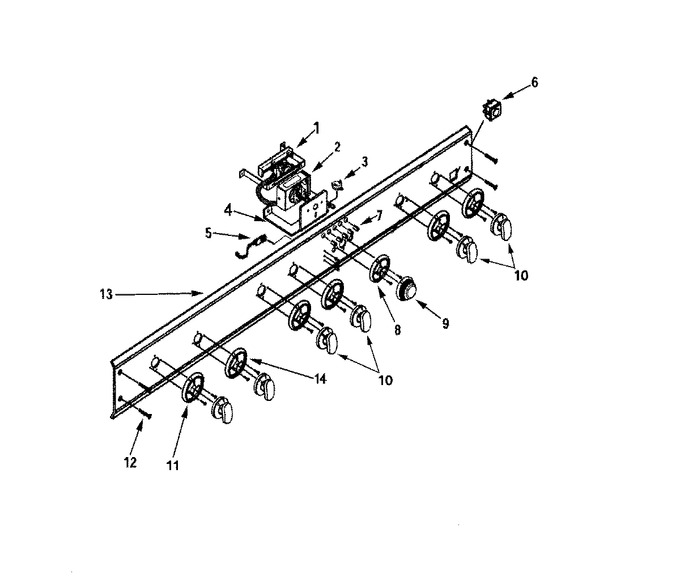

Diagram for PRD3630NP
