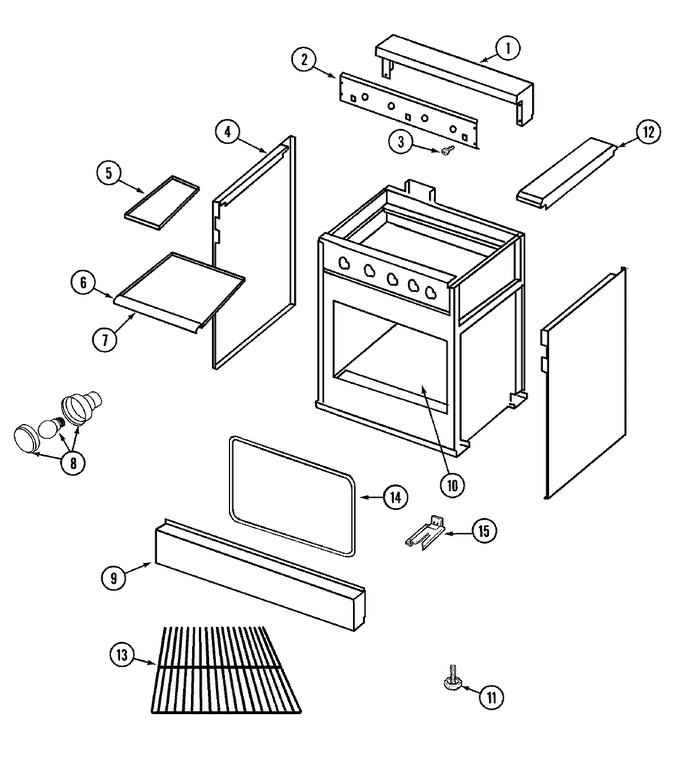

01 - Backguard Assembly


02 - Body


03 - Door


04 - Oven Controls


05 - Top Assembly & Controls


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	73001026		Ledge, Landing (304)	10	Appelez-nous	-
2	73001217		Shield, Heat (lwr)	10	Appelez-nous	-
2	73001184		Panel, Manifold	10	Appelez-nous	-
3	73001112		Screw, Door Panel	10	Appelez-nous	-
4	73001185		Panel, Side (rt)	10	Appelez-nous	-
4	73001186		Panel, Side (lt)	10	Appelez-nous	-
5	73001119		Liner, Drip Pan	10	Appelez-nous	-
6	73001170		Drip Pan Assy.	10	Appelez-nous	-
7	73001023		Handle, Drip Pan (30)	10	Appelez-nous	-
8	WP74011278		Light Assy., Oven   (Replaces: 73001071)	10			$ 106.63
9	73001064		Catch (female)	10	Appelez-nous	-
9	73001019		Kickplate (304)	10	Appelez-nous	-
9	73001061		Strike (male)	10	Appelez-nous	-
10	73001207		Lining, Oven Bottom (30``)	10	Appelez-nous	-
11	73001083		Leg, Leveling	10	Appelez-nous	-
12	73001116		Spacer, Center	10	Appelez-nous	-
13	73001187		Rack, Oven (27``)	10	Appelez-nous	-
13	73001220		Screw	10	Appelez-nous	-
13	73001017		Support, Oven Rack	10	Appelez-nous	-
13	73001206		Clip, Rack Support (u-shape)	10	Appelez-nous	-
13	73001205		Clip, Rack Support (l-shape)	10	Appelez-nous	-
14	73001056		Gasket, Door (27``)	10	Appelez-nous	-
15	WP73001214		Bracket, Anti-tip   (Replaces: 73001214)	10			$ 146.84
15	7101E082		Screw, Cabinet Mntg	10	Appelez-nous	-
16	73001073		Cord, Power	10	Appelez-nous	-
17	4396923		Tray Assy., Broiler Pan   (Replaces: 73001013)	10		Immediately	$ 54.64
