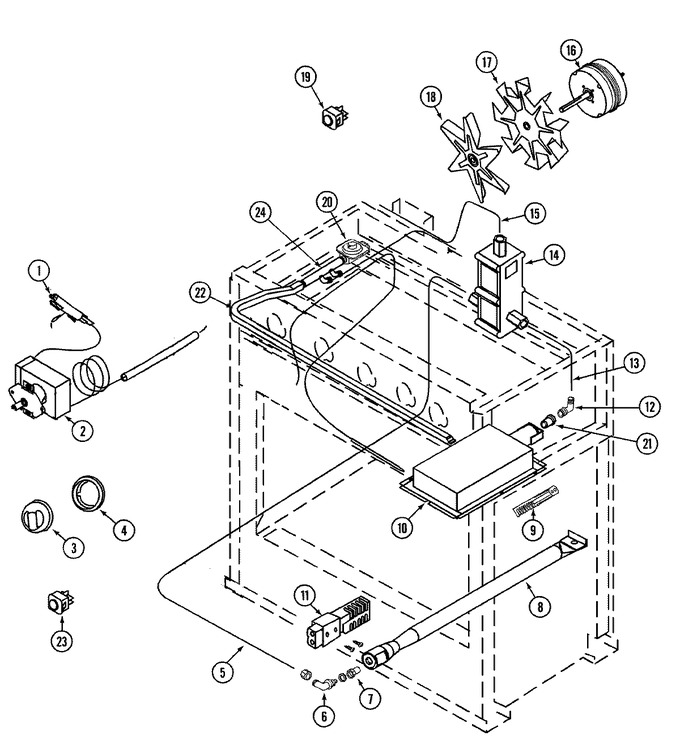

01 - Backguard Assembly
02 - Body
03 - Door
04 - Oven Controls
05 - Top Assembly & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001121 | Lens, Light | 10 |
|
- | ||||
| 1 | 73001070 | Light, Indicator (w/lens) | 10 |
|
- | ||||
| 2 | 73001079 | Harness, Oven-valve/t`stat/ign | 10 |
|
- | ||||
| 2 | 73001048 | Thermostat, Oven Broil | 10 |
|
- | ||||
| 3 | 73001007 | Knob, Oven | 10 |
|
- | ||||
| 4 | 73001055 | Bezel, Plated | 10 |
|
- | ||||
| 5 | 73001094 | Tubing, Dual Valve To Oven | 10 |
|
- | ||||
| 6 | 73001122 | Elbow, Brass | 10 |
|
- | ||||
| 7 | 73001123 | Orifice, Oven Burner (nat) | 10 |
|
- | ||||
| 7 | 73001124 | Orifice, Oven Burner (lp) | 10 |
|
- | ||||
| 8 | 73001036 | Burner, Oven 27`` Rg | 10 |
|
- | ||||
| 9 | 73001068 | Igniter, Broil | 10 |
|
$ 242.85 | ||||
| 10 | 73001039 | Air Shutter | 10 |
|
- | ||||
| 10 | 73001090 | Burner Assy., Infra Red | 10 |
|
- | ||||
| 11 | 73001067 | Igniter, Rear | 10 |
|
- | ||||
| 12 | 73001122 | Elbow, Brass | 10 |
|
- | ||||
| 13 | 73001095 | Tubing, Dual Valve To Ir Burnr | 10 |
|
- | ||||
| 14 | 73001049 | Valve, Dual Thermal Gas | 10 |
|
$ 281.26 | ||||
| 15 | 73001096 | Tubing, Manifold To Dual Valve | 10 |
|
- | ||||
| 16 | 73001069 | Motor, Convection | 10 |
|
- | ||||
| 17 | 73001072 | Blade, Cooling | 10 |
|
- | ||||
| 18 | 73001223 | Cover, Convection Wheel | 10 |
|
- | ||||
| 18 | 73001125 | Blade, Convection | 10 |
|
- | ||||
| 19 | 73001074 | Switch, Light | 10 |
|
- | ||||
| 20 | 73001126 | Regulator, Pressure | 10 |
|
$ 129.64 | ||||
| 21 | 73001127 | Orifice, Broiler (lp) | 10 |
|
$ 43.41 | ||||
| 21 | 73001045 | Orifice No.47 | 10 |
|
$ 23.66 | ||||
| 22 | 73001203 | Pipe, Manifold | 10 |
|
- | ||||
| 23 | 73001074 | Switch, Light | 10 |
|
- | ||||
| 24 | 73001087 | Oven Feed Adapter | 10 |
|
- |
