01 - Backguard Assembly
02 - Body

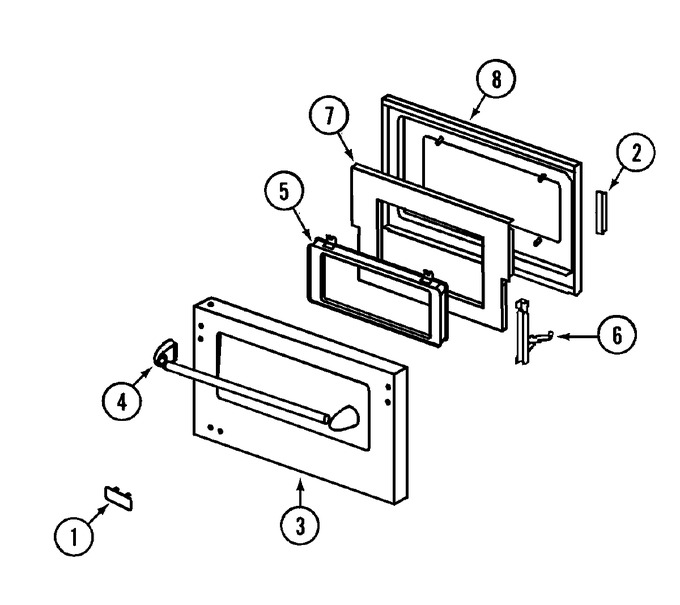

03 - Door
04 - Oven Controls
05 - Top Assembly & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 73001018 | Nameplate (jenn-air) | 10 |
|
- | ||||
| 2 | 73001063 | Receptacle, Hinge | 10 |
|
- | ||||
| 3 | 73001030 | Panel, Door O/s (304) | 10 |
|
- | ||||
| 3 | WP3387230 | Screw, No.10 X .5 Tya (Replaces: 7101P274-60) | 10 |
|
Immediately | $ 7.69 | |||
| 4 | 73001227 | Bolt, Door Handle | 10 |
|
- | ||||
| 4 | 73001009 | Door Handle Assy. (24``) | 10 |
|
- | ||||
| 5 | 73001114 | Window Assy. | 10 |
|
- | ||||
| 6 | 73001109 | Hinge, Door (27``) | 10 |
|
$ 137.81 | ||||
| 7 | 73001189 | Retainer, Insulation (27``) | 10 |
|
- | ||||
| 8 | 73001190 | Lining, Door (27``) | 10 |
|
- |
