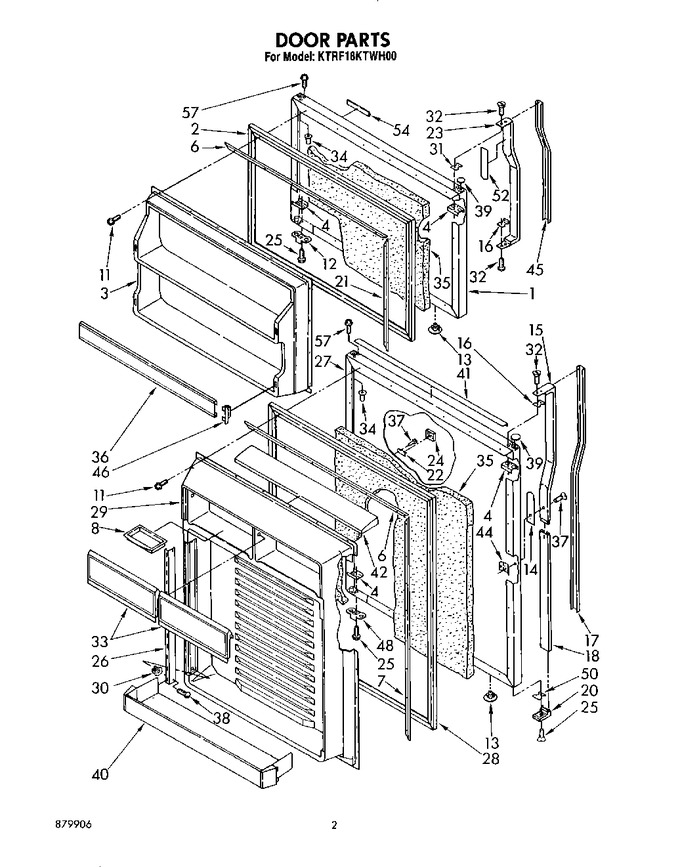

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107683		Door, Freezer (almond)		Appelez-nous	-
1	1107681		Door, Freezer (toast)		Appelez-nous	-
1	1107682		Door, Freezer (platinum) (also Order Item 35)		Appelez-nous	-
1	1107648		Door, Freezer (white)		Appelez-nous	-
2	1107639		Gasket, Freezer Door		Appelez-nous	-
3	1107360		Panel, Interior		Appelez-nous	-
4	943185		Tap Plate (2)		Appelez-nous	-
6	836115		Retainer, Top & Bottom (2)		Appelez-nous	-
7	836117		Retainer, Side (2)		Appelez-nous	-
8	520747		Tray, Butter		Appelez-nous	-
11	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
11	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
12	944035		Bracket, Door Stop		Appelez-nous	-
13	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
13	534927		Plug, Hole (2) (white)		Appelez-nous	-
13	1100196		Hole Plug (2) (toast)		Appelez-nous	-
13	989197		Plug, Hole (2) (almond)		Appelez-nous	-
14	1107650		Shim, Handle		Appelez-nous	-
15	1107230		Center, Handle		Appelez-nous	-
16	1107192		Spacer, Handle		Appelez-nous	-
17	1117543		Insert, Handle		Appelez-nous	-
18	1107209		Retainer, Insert		Appelez-nous	-
20	1107236		Cap, Handle		Appelez-nous	-
21	836119		Retainer, Side (2)		Appelez-nous	-
22	1107329		Clip, Medallion		Appelez-nous	-
23	1107238		Center, Handle		Appelez-nous	-
24	1107226		Handle Plug (white)		Appelez-nous	-
24	1107722		Handle Plug (almond)		Appelez-nous	-
24	1107720		Handle Plug (toast)		Appelez-nous	-
24	1107721		Handle Plug (platinum)		Appelez-nous	-
25	489221		Screw (repair)		Appelez-nous	-
25	WP488921		Screw   (Replaces: 489220)			Immediately	$ 8.24
26	1107005		Ladder, Door Shelf (2)		Appelez-nous	-
27	1107679		Door, Refrigerator (platinum) (also Order Item 35)		Appelez-nous	-
27	1107678		Door, Refrigerator (toast)		Appelez-nous	-
27	1107680		Door, Refrigerator (almond)		Appelez-nous	-
27	1107646		Door, Refrigerator (white)		Appelez-nous	-
28	1107638		Gasket, Refrigerator Door		Appelez-nous	-
29	1107264		Panel, Interior		Appelez-nous	-
30	537095		Clip, Expansion (4)		Appelez-nous	-
31	1107628		Shim, Handle		Appelez-nous	-
32	WP488920		Screw   (Replaces: 489219)				$ 7.98
32	489250		Screw (repair)		Appelez-nous	-
33	1107274		Utility, Door		Appelez-nous	-
34	509929		Cap, Hinge Sleeve		Appelez-nous	-
35	876029		Foam Slab Kit		Appelez-nous	-
36	1107365		Trim, Shelf (2)		Appelez-nous	-
37	WP488729		Screw   (Replaces: 489222)			Immediately	$ 8.28
38	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
39	989196		Plug, Hole (almond)		Appelez-nous	-
39	1100189		Hole Plug (platinum)		Appelez-nous	-
39	WP2212648		Plug, Hole (white)   (Replaces: 844478)			Immediately	$ 8.19
39	1100188		Hole Plug (toast)		Appelez-nous	-
40	1107307		Door Shelf, Cantilever		Appelez-nous	-
41	1107198		Trim Door		Appelez-nous	-
42	1107941		Support, Door Dike		Appelez-nous	-
44	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
45	1117544		Insert, Handle		Appelez-nous	-
46	1107300		Endcap, Trim		Appelez-nous	-
48	1107202		Bracket, Door Stop		Appelez-nous	-
50	1107229		Shim, End Cap		Appelez-nous	-
52	1107609		Shim, Handle End Cap		Appelez-nous	-
54	1107915		Nameplate Assembly		Appelez-nous	-
57	489221		Screw (repair)		Appelez-nous	-
57	WP488921		Screw   (Replaces: 489224)			Immediately	$ 8.24
