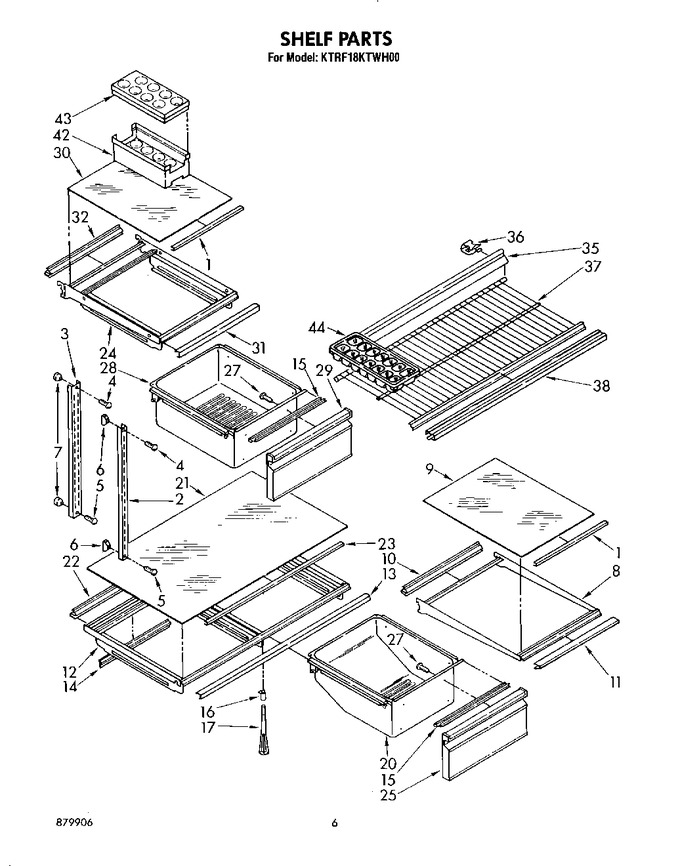

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107265		Shelf Gasket, Front		Appelez-nous	-
2	1107112		Shelf, Ladder		Appelez-nous	-
3	1107301		Shelf, Ladder Center		Appelez-nous	-
4	488623		Screw, (repair) 10 X 1 1/4		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	520965		Screw, Support				$ 31.35
7	520959		Screw, Support Center		Appelez-nous	-
8	1107033		Shelf, Cantilever		Appelez-nous	-
9	1107062		Glass, Shelf		Appelez-nous	-
10	1107066		Glass, Reflector		Appelez-nous	-
11	1107070		Trim, Shelf		Appelez-nous	-
12	1107078		Crisper Cover, Frame		Appelez-nous	-
13	1107082		Trim Frame		Appelez-nous	-
14	1107478		Crisper Gasket, Rear		Appelez-nous	-
15	1107303		Pan Gasket, Front		Appelez-nous	-
16	1107730		Support, Crisper Cover		Appelez-nous	-
17	937340		Post, Crisper Cover		Appelez-nous	-
20	1107871		Pan, Crisper		Appelez-nous	-
21	1107086		Glass, Crisper Cover		Appelez-nous	-
22	1107237		Reflector, Glass Shelf		Appelez-nous	-
23	1107580		Shelf Gasket, Glass		Appelez-nous	-
24	1107359		Meat Pan, Shelf		Appelez-nous	-
25	1107154		Front Cover, Crisper		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
27	488132		Screw (repair)		Appelez-nous	-
28	1107870		Meat Pan		Appelez-nous	-
29	1107178		Front Cover, Meat		Appelez-nous	-
30	1107095		Glass, Meat Pan Shelf		Appelez-nous	-
31	1107130		Trim Frame		Appelez-nous	-
32	1107449		Reflector, Glass Shelf		Appelez-nous	-
35	1117645		Reflector, Wire Shelf		Appelez-nous	-
36	1107246		Clip, Reflector		Appelez-nous	-
37	1107636		Freezer, Shelf Lower		Appelez-nous	-
38	1107105		Trim, Shelf Front		Appelez-nous	-
42	1107384		Egg Container, Bottom		Appelez-nous	-
43	1107388		Egg Container, Top		Appelez-nous	-
44	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 47.84
